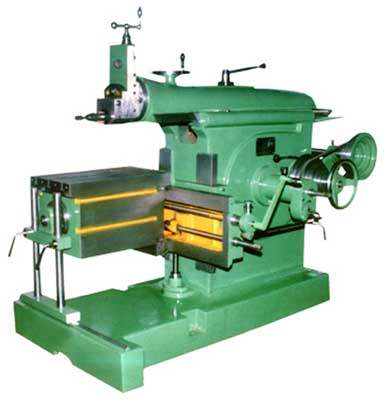

Shaper Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are proud to introduce ourselves as one of the leading Body Machinery Manufacturers and Suppliers from India. We offer a durable range of Shaper Machines that are used in diverse industrial....

View More Details

Send Enquiry

Product Details

We are proud to introduce ourselves as one of the leading Body Machinery Manufacturers and Suppliers from India. We offer a durable range of Shaper Machines that are used in diverse industrial applications. We manufacture Tools Shaper Machine using acme quality raw materials so as to assure our clients of our credibility. Shaper Machines offered by us is widely recommended by our esteemed customers for their attributes like high precision and unrivalled performance. Moreover, we ensure timely and safe delivery to the particular destination. Additionally, we also provide custom-built services as per the drawings given by our customers.

Specifications

MODEL	H-12	H-18	H-24	H-30	H-36	H-42
Length of ram stroke:	12" / 305 mm	18" / 457 mm	24" / 610 mm	30" / 762 mm	36" / 915 mm	42" / 1070 mm.
Length of ram (mm):	711	960	1232	1410	1651	2108
Length x Width of Ram bearing (mm):	724 x 203	700 x 270	867 x 300	1020 x 330	1130 x 330	1600 x 330
Distance from Table to Ram Max / Min (mm):	257 / 41	360 / 75	450 / 76	510 / 75	565 / 102	600 / 102
Working Surface of table (mm):	305 x 228	457 x 305	610 x 370	762 x 390	915 x 457	1078 x 533
Horizontal Table Travel Max (mm):	330	488	635	787	940	1075
Vertical Table Travel Max (mm):	140	330	380	450	525	585
Angular Movement of Table (degrees):	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R
Vertical Travel of Tool Slide Max. (mm):	140	152	190	203	255	300
Swivel of Tool Head Max. (degrees):	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R	60 L / 60 R
Base Length x Width (mm):	940 x 483	1346 x 502	1676 x 610	1829 x 660	1980 x 660	2286 x 762
Diameter of Clutch Pulley (mm):	235	311	311	311	380	380
Number of Ram Speeds:	3	4	4	4	4	4
Ram Speeds (Strokes per Minute):	30, 60, 90	16, 32, 64, 96	14, 28, 42, 62	8, 16, 32, 48	10, 20, 30, 50	8, 16, 32, 48
Motor Pulley Diameter (mm):	51	70	70	76	88	88
Motor (HP / RPM):	1 / 1440	2 / 1440	3 / 1440	5 / 960	7.5 / 960	10 / 960
'V' Belt Section	B-55	B-55	B-55	B-58	B-70	B-75
Approximate net / Gross weight (kilos):	700 / 850	1200 / 1500	1850 / 2100	2300 / 2600	3500 / 3900	4000 / 4500
Overall size of the machine - L x W x H (mm):	1.25 x 0.8 x 1.4	1.6 x 1.0 x 1.4	2.0 x 1.1 x 1.6	2.2 x 1.25 x 1.6	2.5 x 1.4 x 1.7	2.9 x 1.5 x 1.9
Approximate shipping volume (m3):	1.4	2.3	3.6	4.5	6	8.5
