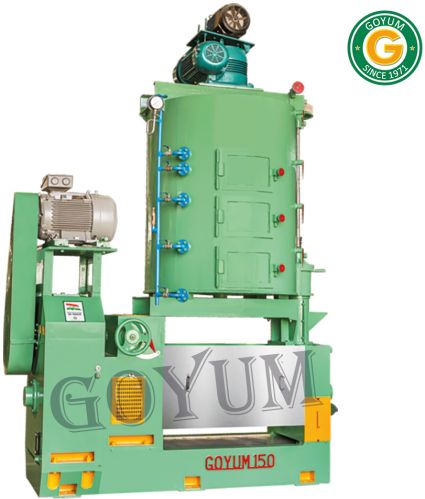

Shea Butter / Shea Nut Oil Extraction Machines

₹ 26.35 Lakh - ₹ 29.33 Lakh / piece

Driven TypeElectric
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Length8’6
Machine Weight4800 Kgs (With Three Stage Kettle),5500 Kgs (With Four Stage Kettle)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 03AAVPG4261E1ZV

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNew
Capacity15 – 17 Ton In 24 Hours,250 – 300 Machines Annually
Machine Weight4800 Kgs (With Three Stage Kettle),5500 Kgs (With Four Stage Kettle)
Packaging TypeWooden Box
Driven TypeElectric
Country of OriginIndia
Operating TypeSemi Automatic
Automation GradeSemi Automatic
ApplicationMulti Seed Oil Extraction
SpecialitiesHigh Performance
I Deal InNew Only
Model NumberGOYUM 150
Brand NameGoyum
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
Length8’6
Kettle MotorFor 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
Number Of FlowerCommercial Expeller
Breadth4'7
Chamber SizeDia 7.5” X Dia 6.5” X 45” Long
Height13 feet (With Four Stage kettle), 11.5 feet (With Three Stage Kettle)
Expeller Motor3 Phase, 40 HP, 1440 RPM
Total Carbohydrate1 Year Against Manufacturing Defects

Shea Butter / Shea Nut Oil Extraction Machines is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Additional Information

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.
