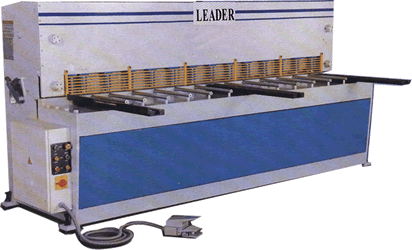

Shearing Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features :Hydraulic/Mechanical over crank type plate shearing machine available in thickness of 5 mm to 25 mm and lengths of 1500 mm to 3500 mm. Hardened and ground 4 edged blade, frontal supports and back gauge.

View More Details

Send Enquiry

Company Information

Al Gouri Machinery Trading L.L.C.

Dubai

View Number

Member Since 10 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL NO.	Shearing Capacity		No. of Holds Down	Length of Back guage	Weight	Length	Width	Height	Motor (kW) HP
MODEL NO.	Width	Cutting Capacity	No. of Holds Down	Length of Back guage	Weight	Length	Width	Height	Motor (kW) HP
HyS1	1600	6	9	600	3000	2300	1500	1800	7.5 (5.5)
HyS2	2000	6	11	600	3500	2700	1500	1950	7.5 (5.5)
HyS3	2500	6	13	600	5000	3000	1500	1950	7.5 (5.5)
HyS3	3000	6	16	600	7500	3500	1600	1950	10 (7.5)
HyS5	1600	8	9	600	4200	2300	1600	1800	10 (5.5)
HyS6	2000	8	11	600	4500	2500	1600	1950	15 (11)
HyS7	2500	8	13	600	5500	3000	1600	1950	15 (11)
HyS8	3000	8	16	600	6500	3500	1600	1950	15 (11)
HyS9	1600	10	9	600	5000	2300	2050	2150	10 (7.5)
HyS10	2000	10	11	600	6000	2500	2050	2150	20 (15)
HyS11	2500	10	13	600	7500	3000	2050	2150	20 (15)
HyS12	3000	10	16	600	9500	3500	2050	2150	20 (15)
HyS13	1600	12	9	600	6000	2300	2050	2150	10 (7.5)
HyS14	2000	12	11	600	6500	2700	2200	2200	20 (15)
HyS15	2500	12	13	600	8000	3200	2200	2200	20 (15)
HyS16	3000	12	16	600	12000	3950	2200	2200	20 (15)
HyS17	2500	16	13	600	8500	3250	2200	2200	25 (18.75)
HyS18	3000	16	16	600	12500	4000	2200	2200	25 (18.75)
