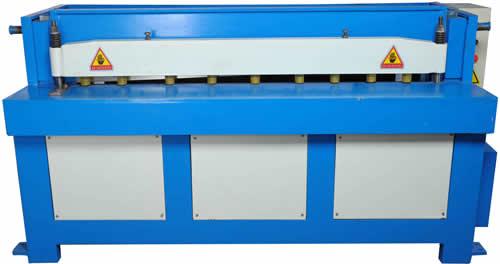

Shears

We are offering shears
the machine is of all-steel welded construction. Simple construction with good appearance. It is easy to operate, with low energy consumption. It is widely used for medium and thick steel sheet forming in the light machine industry , hardware manufacture. The blade is made from cr9si. Cnc backgauge is available to give higher precision
type thickness (mm) width
(mm) cutting augle traveltimes area
(mm) main moter
(kw) weight
(kg) modle size
mm(lxwxh)
sbjb2x1300 2 1300 2°25′ 20 350 3 670 2015x1500x1300
sbjb3x1300 3 1300 2°25′ 20 350 3 1270 2115x1500x1300
sbjb3x1500 4 1500 2°25′ 20 350 3 1800 2515x1500x1300
sbjb4x2000 4 2000 1°30′ 20 500 5.5 3300 3200x1300x1610
sbjb4x2500 4 2500 1°30′ 20 500 5.5 3800 3580x1300x1610
