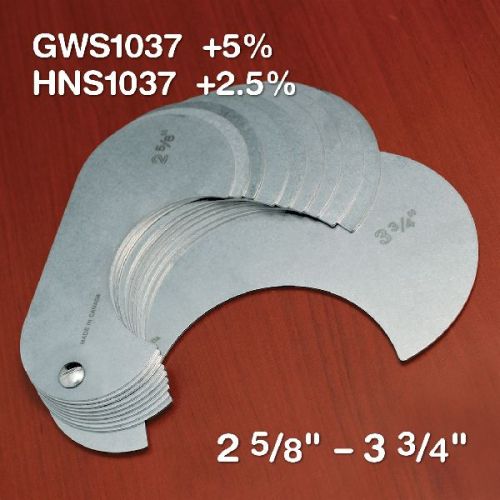

Sheave Gauge 2 5/8 - 3 3/4

₹ 15,372 / S5W 1037

MOQ1 Set(s)
GWS1037+5% Stainless Steel - Imperial
NNS1037+2.5% Stainless Steel - Imperial
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are the leading Manufacturer, Exporter & Supplier of Wire Rope & Sheave Gauges. These gauges are used to measure worn sheave grooves at the end and measure wire rope on the shank. Standard (Imperial) Wire Rope & Sheave Gauge Style : Sheave Gauge with Wire Gauge on the Shank Material : 18 gauge (0.05") Stainless Steel Sheave Gauge : Nominal +5% or +2.5% Tolerance : ± 0.005" Sizes: 2 5/8, 2 3/4, 2 7/8, 3 , 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4 GWS1037 +5% Sheave Gauge and Nominal Wire Gauge HNS1037 +2.5% Sheave Gauge and No-Go Wire Gauge

Specifications

Part#	Size Range	Set Size	Price
MWS1006	6mm - 15mm	10 Gauge Set	$86 CAD
MWS1012	12mm - 25mm	10 Gauge Set	$86 CAD
MWS1016	16mm - 34mm	10 Gauge Set	$86 CAD
MWS1026	26mm - 44mm	10 Gauge Set	$86 CAD
MWS1036	36mm - 52mm	10 Gauge Set	$86 CAD
MWS1206	6mm - 18mm	12 Gauge Set	$98 CAD
MWS1212	12mm - 28mm	12 Gauge Set	$98 CAD
MWS1232	32mm - 52mm	12 Gauge Set	$98 CAD
MWS1506	6mm - 24mm	15 Gauge Set	$120 CAD
MWS1512	12mm - 34mm	15 Gauge Set	$120 CAD
MWS1526	26mm - 52mm	15 Gauge Set	$120 CAD
MWS2006	6mm - 32mm	20 Gauge Set	$154 CAD
MWS2016	16mm - 50mm	20 Gauge Set	$154 CAD
MWS2506	6mm - 42mm	25 Gauge Set	$186 CAD
MWS2512	12mm - 52mm	25 Gauge Set	186 CAD
MWS3006	6mm - 50mm	30 Gauge Set	$220 CAD
LCH	Lanyard Clip Holder		$5 CAD
LAN	Lanyard (Black)	Safety Breakaway Clip	$5 CAD

Technical Specifications

Part No.	Sizes (mm)
10 Gauge Set
MWS1006	6, 7, 8, 9, 10, 11, 12, 13, 14, 15
MWS1012	12, 13, 14, 15, 16, 18, 20, 22, 24, 25
MWS1016	16, 18, 20, 22, 24, 26, 28, 30, 32, 34
MWS1026	26, 28, 30, 32, 34, 36, 38, 40, 42, 44
MWS1036	36, 38, 40, 42, 44, 45, 46, 48, 50, 52
12 Gauge Set
MWS1206	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 18
MWS1212	12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 34
MWS1232	26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 45, 46, 48, 50, 5
15 Gauge Set
MWS1506	6, 7, 8, 9, 10, 11, 12, 13, 14, 15
MWS1512	12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28
MWS1526	32, 34, 36, 38, 40, 42, 44, 45, 46, 48, 50, 52
20 Gauge Set
MWS2006	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32
MWS2016	16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 45, 46, 48, 50
25 Gauge Set
MWS2506	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32
MWS2512	12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 45, 46, 48, 50, 52
30 Gauge Set
MWS3006	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 45, 46, 48, 50

Vol. Discounts	1	5 (10%)	10 (15%)	25 (20%)	50 (25%)	100 (30%)
10 Gauge Sets	$86.00	$77.40	$73.10	$68.80	$64.50	$60.20
12 Gauge Sets	$98.00	$88.20	$78.40	$73.50	$68.60	$63.70
15 Gauge Sets	$120.00	$108.00	$102.00	$96.00	$90.00	$84.00
20 Gauge Sets	$154.00	$138.60	$130.90	$123.20	$115.50	$107.80
25 Gauge Sets	$186.00	$167.40	$158.10	$148.80	$139.50	$130.00
30 Gauge Sets	$220.00	$198.00	$187.00	$176.00	$165.00	$138.60
Print (each)				$8.00	$6.00	$3.60
Code	F/V	E/T	D/S	C/R	C/R	C/R
