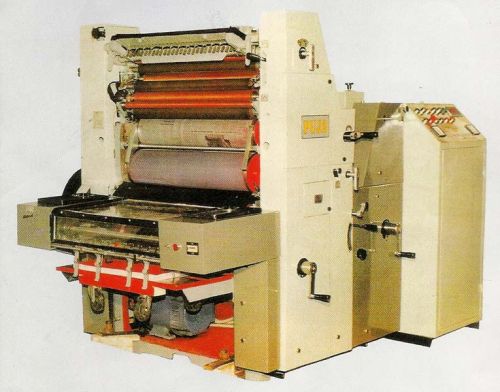

Our company is bracketed with the notable Manufacturers and Suppliers of Sheet Fed Offset Printing Press across India. We are offering a range of Sheet-Fed Offset Printing Press in large quantities to the market involved in printing & other related activities. Other than quality, we strive on providing ecology, economy, and peak performance with the offered Printing Press. In addition, our Sheet-Fed Offset Printing Press displays a unique structure and is supplied all over India.
Salient Features
Sharp Registration
Quick Change Over time
Consumes less power
Fat Adjustments
Point to point fidelity
Hard Chrome Plated Rollers
Bearer to bearer Technique
dopuble & No-Sheet Detector
Auto Lubrication system
Consistent Reliability
Simple & Responsive
Operator controls
The delivery stack, lowers automatically & a limit switch stops the press when the pile is full.
Largest Paper format | 18" x 25" | 18" x 28" | 20" x 30" |
|---|---|---|---|
Largest board format | 460 x 640 mm | 460 x 715 mm | 530 x 785 mm |
Smallest paper format | 450 x 640 mm | 450 x 715 mm | 520 x 785 mm |
Impression Area | 445 x 636 mm | 445 x 711 mm | 515 x 780 mm |
Plate size (max. Thickness 0.25 mm) | 510 x 645 mm | 510 x 720 mm | 580 x 790 mm |
Blanket Size (Max. Thickness (190 mm) | 570 x 650 mm | 570 x 720 x 1.7 mm | 640 x 800 x 1.7 mm |
Number of Ink Rollers | 20 | 20 | 20 |
Number of Ink from rollers | 3 | 3 | 3 |
Diameters of Ink Form Roller | 58, 63, 70 mm | 58, 63, 70 mm | 58, 63, 70 mm |
Number of dampening roller | 5 | 5 | 5 |
Max. Printing speed | 8, 000 iph | 8, 000 iph | 8, 000 iph |
Pile height, feeder | 800 mm | 800 mm | 850 mm |
Pile Height, delivery unit | 410 mm | 410 mm | 450 mm |
Min. Gripper Margin | 9 mm | 9 mm | 9 mm |
Floor Space Occupied | 1290 x 1935 mm | 1290 x 1935 mm | 1350 x 2050 mm |
Machine net weight | 1, 850 kg | 2, 050 kg | 2, 400 kg |
Shipping weight | 2, 300 kg | 2, 252 kg | 2, 800 kg |
Shipping volume | 6.65 m3 | 6.89m3 | 7.15m3 |
Power required | 5 H.P. | 5 H.P. | 7.5 H.P. |
Weights of Paper (Min. / Max.) | 30g/m2-600 g/m3 | 30g / m2 – 600 g/m2 | 30g/m2-600 g/m2 |
