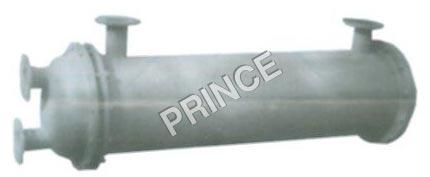

Shell & Tube Chiller

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Shell & Tube Chiller, which we offer, is acclaimed for low power consumption and ease-of-maintenance. We offer this Shell & Tube Chiller at the market leading rates to the clients. Moreover,....

View More Details

Send Enquiry

Product Details

The Shell & Tube Chiller, which we offer, is acclaimed for low power consumption and ease-of-maintenance. We offer this Shell & Tube Chiller at the market leading rates to the clients. Moreover, these Shell & Tube Chillers are manufactured in confirmation to the set industrial standards.
Brand Name : Air Tech
Material Of Constructions

Shell : MS ERW pipes or rolled from MS plates
Tubes : Plain copper tubes
Tube Sheets : MS plate
End covers : Fabricated from MS plates

Connections

Shell side : MS Pipe with companion flanges.
Tube side : MS Pipe with companion flanges.
Painting : Synthetic enamel paint after two coats of red oxide primer.

Pressure Testing

Shell side : 350 psi - Hydraulic
Tube side : 350 psi - Pneumatic
Special Condensers : Our Standard chillers are designed & fabricated as per good engineering practice. However we can provide Chillers as per design codes IS, ASME & TEMA. We can also provide chillers with other materials such as MS or stainless steel tubes and SS shells

Nominal Capacity based on

Heat transfer per TR : 12000 Btu/Hr
Water Inlet temp. : 59^oF
Water Outlet temp. : 50^oF
Water flow rate : 2.67 US GPM/TR

Specifications

Model	Nomial Capacity TR*	Shell Dia. Inch	Tube Length ft.	Water Conn. (Tube Side)	Refri Conn (Shell Side)
				Inlet/OutletNB Inch	Inlet		Outlet
				Inlet/OutletNB Inch	Nos.	NB Inch	Nos.	NB Inch
VCH-6524	3	6	5	1.5	1	0.75	1	1.25
VCH-8544	5	8	5	2	1	0.75	1	1.5
VCH-8744	8	8	7	2	1	0.75	1	1.5
VCH-10668	10	10	6	2.5	1	1	1	2
VCH-10868	15	10	8	2.5	1	1	1	2
VCH-12892	20	12	8	2.5	2	0.75	2	2
VCH-121092	25	12	10	2.5	2	0.75	2	2
VCH-149120	30	14	9	3	2	0.75	2	2
VCH-169164	40	16	9	4	2	1	2	2
VCH-1611164	50	16	11	4	2	1	2	2
VCH-209252	60	20	9	5	2	1.25	2	2.5
VCH-2010252	70	20	10	5	2	1.25	2	2.5
VCH-2012252	80	20	12	5	2	1.25	2	2.5
VCH-249380	95	24	9	5	2	1.25	2	3
VCH-2410380	105	24	10	5	2	1.25	2	3
VCH-2412380	125	24	12	5	2	1.25	2	3
VCH-308600	130	30	8	5	2	2	2	4
VCH-309600	150	30	9	5	2	2	2	4
