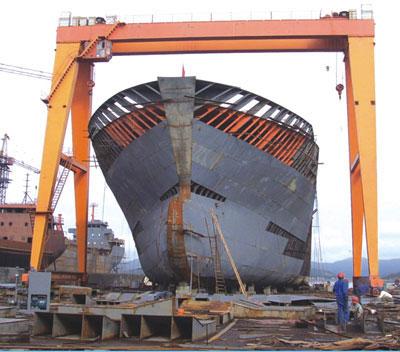

Shipbuilding Gantry Cranes

We offer shipbuilding gantry cranes.
Model number mg
rated lifting moment 3000kn
rated loading capacity 300t
max. Lifting load 300t
max. Lifting height 60m
span 50~185 m
application outdoor, shipside
feature gantry crane
condition new
maintenance platform standard
limit switch include
overload device load include
storm brakes automatic clamp type best
control cabin
electric siemens
colour as you request
iso9001 pass
work class a5-a7
inveter yaskawa
pdetailed product description
shipyard gantry crane 1.max capacity:300t 2.max span:185m 3.max lifting height:60m 4. Used in shipyard, port and dock
shipyard gantry crane
shipyard gantry crane is crane machinery with large hoisting capacity, multiple functions and high efficiency,dedicated to subsection transport of large ship, butt jointing, and overturning on dock or shipway.

characteristics:
1. Single hanging, lifting hanging, air overturning, air unbalanced tiny turn grievances, such as micro-multiple functions.
2. Upper-crab has double main hooks separately situated at the outer side of the main girder which can separate or simultaneously horizontally move within 0-2m.
3. Lower crab has main and auxiliary hooks situated below the center of girder.
4. The two crabs can mutual act in the air.
5. In order to prevent the attacks of storms, there are reliable wind-shielding devices such as rail clamp, ground anchor.

crane girder:
the crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!

safety
overload protection,
main lifting motor with thermal protection,
hooks with latch,
rubber buffers
protective earthing,
crane switch and travel end switch,
emergency switch can stop all movement when any dangerous happened,
sub-assemblies characteristic are tested before assembly.
All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.

feature
1) reasonable structure
2) favorable performance
3) smooth starting and stopping
4) safe and reliable traveling
5) low noise, commodious cabin and good view
6) convenient maintenance, excellent exchangeability for parts and components
7) saves electricity specifications.
