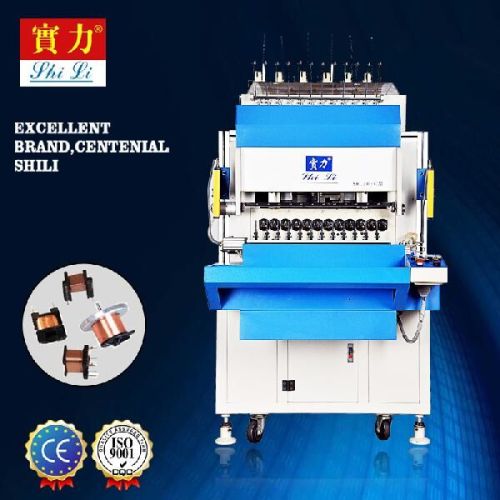

SHL210-12 Full Automatic Electrical Motor Rewinding Machine

We are offering automatic winding machine.
Function and feature:
the machine adopts industrial pc ((r & d), equipped with imported multi axis motion module (galil usa) control system, stable and reliable,with the japan import of shan yang high power servo motor, japan bando belt, japan bearing (ntn), japan (smc) cylinder ,taiwan ball screw and guide rail (tbi). The machine running high speed, high accuracy, high production.
1.unique winding fixture design, dress up fast.
2.can be set from 0 to 90 angle wrapped wire. Can finish the two angles at one time.
3.precision tension wire frame control, quality and more secure.
4.with movable wire clamping function, a wire clamping device without any residual line.
5.use windows interface, a simple high-level language instruction, convenient programming.
6.password storage function, to prevent non-related personnel to modify the program.
7.with automatic loading and unloading functions, increase production.
8.twisting function.(optional)
9.to configure the thread breakage detecting device.
10.the external display design, to prevent information leakage parameters.
Specifications:
spindle number 12
wire size range 0.02-0.4mm
max bobbin diameter 42mm
spindle pitch 40mm
maxspeed 12000turnmin
moving range of guide pin x spindle:0-60mm, y spindle:0-50mm, z spindle:0-85mm
control method ac servo motor drive system
twist speed 3000turnmin
winder direction adjustable at both ends
input power 220v, 6050hz
machine size 1800*1000*1900mm
total power 3.4w
weight 530kg
