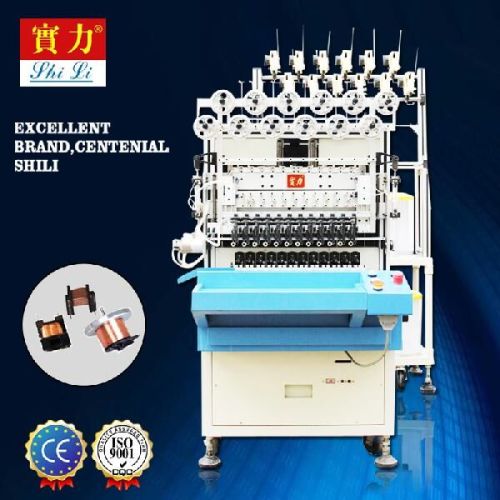

SHL212-12 12 Spindle Automatic Taping Machine and Winding Machine

We are offering spindle automatic taping machine.
This machine adopts integrated control system of taiwan, the whole selection of imported spare parts, including: taiwan ac servo motors, japan cylinders (smc), japan bearings (ntn), japan bandobelt, taiwan (tbi) ball screw and guide rail, etc. Machine is stable and reliable, precise positioning. With full touch screen of english and chinese, clear interface, convenient and easy to operate, combined with automatic winding machine taping integration, so that customers feel saving time, labor saving and high production effect in the process of use.
Function and feature:
1. Unique winding fixture design, dress up fast
2. You can set 0-180 degree winding angles, can finish many angles winding in one time.
3. Precision tension wire frame control, product will be better quality and more secure.
4. With automatic cable management features, gripper without leaving I line
5. Automatic feeding device, improve production efficiency. (optional).
6.using high-precision magnetic tension device, winding is better, can save more copper wire.
Application range:
cell phone charger transformer, watch coils, lighting high-frequency transformers, solenoids, ee transformer,ei transformer,stepping motor,relay,coil class,auto abs,switch power transformer and special products.
Specifications:
spindle number 12
wire size range 0.02-0.3mm
max bobbin diameter 40mm
spindle pitch 30mm
max speed 12000turnmin
moving range of the guide pin x(before and after) 0-60mm, y(left and right) 0-60mm, z(up and down) 0-60mm
control method industrial control
input power ac220v, 6050hz
input pressure 6kgcm
