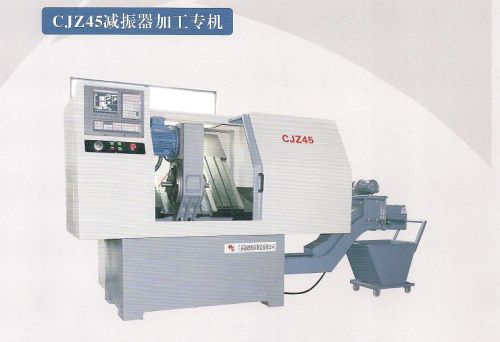

Shock Absorber Processing Machine CJZ45

We are offering shock absorber processing machine cjz45.
main technical parameters
item specification unit parameters
power head parts turning power head speed rpm 500-2000
head main motor power kw 4
chuck clamp range mm ф35-ф45
spindle inner diameter mm ф200
left cross sliding
table parts x1 sliding table travel mm 280
x1 direct servo motor static torque 4nm
x1 direct sliding table
rapid movement speed m/min 10
x1 direct guide type linear guide
z1 direct sliding travel mm 80
z1 direct servo motor static torque 4nm
z1 direct sliding table
rapid movement speed m/min 10
z1 direct guide type linear guide
right cross sliding
table parts x2 sliding table travel mm 280
x2 direct servo motor static torque 4nm
x2 direct sliding table
rapid movement speed m/min 10
x2 direct guide type linear guide
z2 direct sliding travel mm 250
z2 direct servo motor static torque 4nm
z2 direct sliding table
rapid movement speed m/min 10
z2 direct guide type linear guide
specification overall dimensions mm 2025x1530x1190
machine weight kg 1800
