Shoes Materials and Leather Laser Engraving Cutting Machine

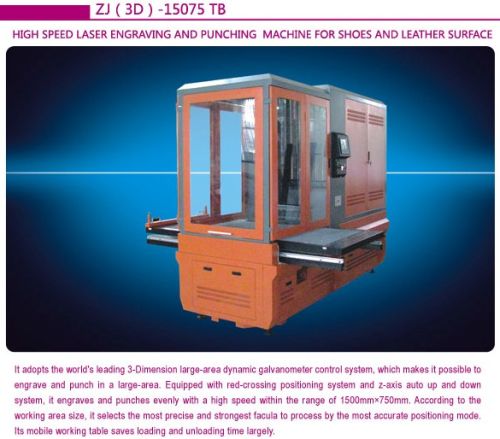

ZJ(3D)-15075 TB high speed laser engraving and hollowing machine for shose and leaher surface
Product Feature
Adopts the world's leading 3-Dimension large-area Dynamic Galvanometer control system, it made the large size engraving and hollowing as possible. The system is engraving and hollowing evenly with very high speed within the area of 750mm×750mm, equipped with Red-crossing positioning system and Z-axis auto up and down system. It selects the most precise facular, the most strong laser power, the most accurate positioning mode for processing according to processing area. Movable working table selection, saving the loading and unloading time largely.
Application Field
Suitable for all kinds of fur, leather fabric.
Technical Parameter
Laser type CO2 RF metal laser tube
Laser power 150W
Working area 1500mm×750mm
Working(no-load)speed 0-420000mm/min
Moving system 3-Dimension Dynamic offline moving control system,5 inch LCD display
Cooling system Constant temperature water chiller
Working table Auto mobile zinc honeycomb working table
Repeating location ±0.1mm
Power supply AC220V±5% / 50HZ
Format support AI, BMP, PLT, DXF, DST etc
Standard collocation Two 1100W exhaust fans,foot switch
select collocation CO2 RF Metal laser tube(100W),red cross light location system
*Working size, laser power can be selected as customer requirement.*
