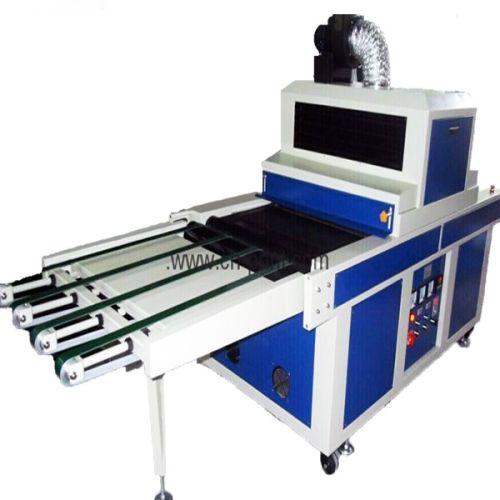

Electric Semi Automatic Shoes UV Curing Machine TM-500UVF-A

Product name

Shoes UV curing machine

Model No

TM-500UVF-A

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Shoes UV curing machine TM-500UVF-A with 4pcs 3KW UV lamp

UV Curing Machine TM-500UVF-A be fit to  UV curing drying for Shoes, plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying ,  UV pritning, packing products UV drying .

 UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Advantage

1 good Teflon belt which can bear the high temperature
2 add 1 set intensive air cooling extraction controlled with thermostat
3 install a vacuum suction system internal the tunnel very very strong for the conveyor

Parameter

1. Model NO. TM-500UVF-A
2.UV Drying products：500*100*2000mm
3.Conveyor belt size：L2200* W500MM
4.UV Lamp power：4PCS*3KW /380V
5.Total wattage：13KW
6.Wind fan wattage: 1000W/380V
7.Motor wattage:1000W/3P/380V
8.Conveyor speed:0~10m/min
9.Speed change ways: Continue
10. Dimension: L*W*H2120*500*1350
11.Weight:350kg

Usage

Application area : uv curing ,uv shine coating ,UV oven

Shipping way

By sea, by air, by express

Delivery time

Within 40 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)
