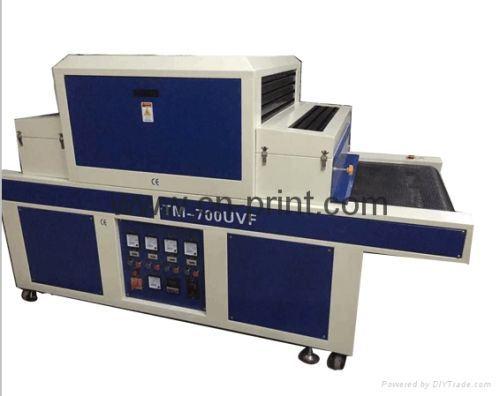

Electric Semi Automatic Shoes UV Curing Machine TM-700UVF-A

₹ 7.74 Lakh / Set

MOQ1 Piece(s)
Machine TypeSemi Automatic
Driven TypeElectric
CertificationISO 9001:2008 CE Certified
Brand NameLuen Cheong (LC)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerUv Curing Machine
CertificationISO 9001:2008 CE Certified
Availability100-500kg, 350kg
Country of Origin380v
ApplicationUltraviolet Light To Cure And Dry A Coated Surface
Machine TypeSemi Automatic
Total Carbohydrate1 Year
Driven TypeElectric
Brand NameLuen Cheong (LC)
ConditionNew
Power23kw
After-Sales Service ProvidedEngineers available to serive oversea
Wind fan wattage1000W/380V
Total wattage23KW
DimensionL*W*H2120*700*1350
Motor wattage1000W/3P/380V
Conveyor belt sizeL2200* W700MM
Conveyor speed0~10m/min
UV Lamp power4PCS*5.6KW /380V
UV Drying products700*100*2000mm

UV Curing Machine TM-700UVF-A be fit to UV curing drying for Shoes, plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV spraying , UV printing, packing products UV drying .

UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, step-less speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Parameter

Product name	Shoes UV curing machine
Model No	TM-700UVF-A
Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	UV Curing Machine TM-700UVF-A be fit to UV curing drying for Shoes, plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV spraying , UV printing, packing products UV drying . UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, step-less speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics
Advantage	1 good Teflon belt which can bear the high temperature 2 add 1 set intensive air cooling extraction controlled with thermostat 3 install a vacuum suction system internal the tunnel very very strong for the conveyor
Parameter	1. Model NO. TM-700UVF-A 2.UV Drying productsï¼�7001002000mm 3.Conveyor belt sizeï¼�L2200* W700MM 4.UV Lamp powerï¼�4PCS5.6KW /380V 5.Total wattageï¼�23KW 6.Wind fan wattage: 1000W/380V 7.Motor wattage:1000W/3P/380V 8.Conveyor speed:0~10m/min 9.Speed change ways: Continue 10. Dimension: LWH2120700*1350 11.Weight:350kg
Usage	Application area : uv curing ,uv shine coating ,UV oven
Shipping way	By sea, by air, by express
Delivery time	Within 40 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)
