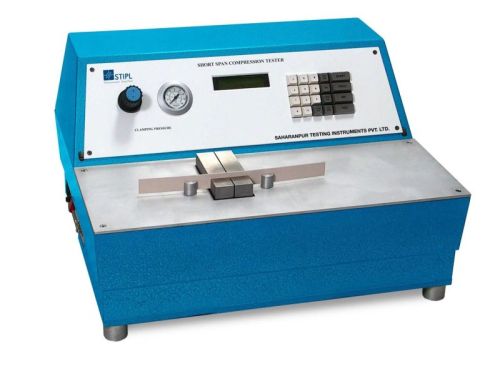

STIPL Semi Automatic Short Span Compression Tester

₹ 1 - ₹ 10,000 / Unit

Automatic GradeSemi Automatic
Brand NameSTIPL
ApplicationFor Determination of Compression Strength and Compression Index On Paper and Board Samples
Number Of FlowerCompression Testers
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 2 Years
Nature of Business Manufacturer
GST No. 09AAQCS9142J1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Automatic GradeSemi Automatic
Number Of FlowerCompression Testers
Country of OriginIndia
ApplicationFor Determination of Compression Strength and Compression Index On Paper and Board Samples
Brand NameSTIPL
GSM Range100 to 400 g/m2
Clamping Force2300 ± 500 N At 500 Kpa (75 Psi) Air Pressure
Accuracy± 1% of reading within 30-300 N
Compression Length0.5 mm
Power Consumption175 W
Instrument Air5 Kg/cm2
Computer outputRS 232C
Power Supply1 Phase
Strip DimensionLength 150 Mm , Width 15 Mm
Measuring ResultsPeak Load for Compression Strength of Individual Values -mean & Max. Value and Coefficient of Variat
StandardisationISO 9859 , TAPPI T826 , SCAN P46 , DIN 54518 , APPITA/AS 1301.450
Test Span0.7 mm

Device Description : The short span compression tester is used for paper or board strips with 15mm width. The jaws clamps the strips with definite force and then the jaws move from 0.7mm towards the center until a break is detected . on the LCD the values are displayed

Test Description: the sample is put into the open clamps by pressing the start button , the clamps close and move together with a speed of 3+- 0.1mm/minute , the curve is displayed and as soon as the break is detected the value is shown on the LCD . After several tests the statistics values and the ratio between MD and CD are displayed. Optionally a sample feeder can be delivered, which moves the sample strip for next test sequence. The sample feeder moves the sample approx 3cm and allows several tests on one strip.
