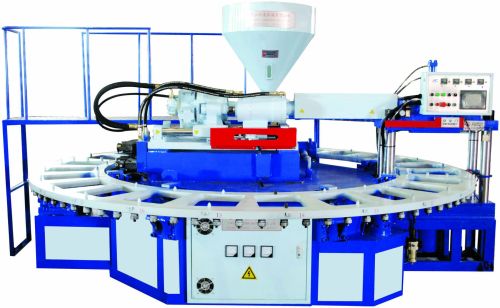

Shose Blowing Molding Machine JIC 724

1.Mainly produce outsole of leisure shoes and slipper ,sandle with the material of PVC .
2.PLC controlling system and humanized interface.
3.Large ingection capacity and clamping force which insure the quality of the products .
4.Feed out switch is installed to save working time and increase output .
5.The machine adopts double proportional control and the injection speed ,material quantity ,power are adjustable to insure the stability of products quality .
Material --------PVC
Station number--------24
Screw diameter --------70mm
Screw speed --------0-150rpm
Max injection ---------770
Clmpping force ---------60T
heating power ---------7kw
Temperature rate-------4 point
Max mold size ---------460*220*300mm
Machine size ---------4050*4050*2250mm
Total weight ---------6500kg
