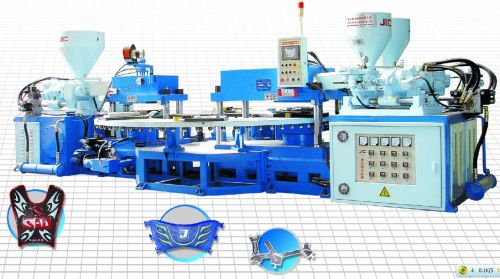

Shose Upper Molding Machine JIC806

1.Specilized in single,double or three color uppers of slipper ans sandle with material of PVC or TPR .
2.Industralized man-machine interface ,PLC controlling system and touch-display.
3.Double-ratio hydraulic system
4.Acurrate digital measurement ,energe saving ,easy to opperate ,high out put .
5.master and slave can be exchanged mutually to use ,it has stronger adaptability ,single ,double ,and three color can be chosen freely .
Material --------PVC/TPR
Station number--------6 or 8
Screw diameter --------60mm 45*2
Screw speed --------0-155rpm
Max injection ---------565cm 240*2
Ijection hyraulic---------80MPa
Clmpping force ---------100t
Motor power ---------15 ,11kw
heating power ---------16kw
Temperature rate-------4 point
Max mold size ---------400*400*110mm
Machine size ---------6300*2850*1920mm
Total weight ---------10000kg
