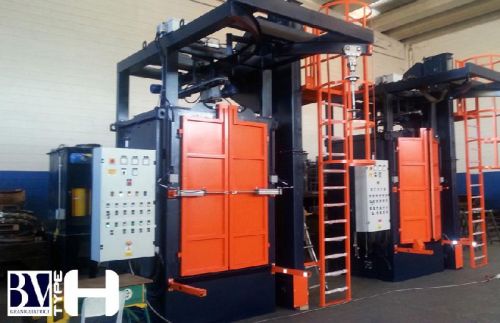

Shot Blasting Machine, Brand Name : BV, Certification : ISO

Automatic movement with motorized hoists
hook type shotblasting machines type h are builded in varying models, where the components are hung individually or in batches depending on size and are loaded into the machine on a trolley which slides on the overhead monorail conveyor. During the work cycle the hook is rotated ensuring a uniform blast effect. These models can be equipped with two or more hooks with option of automatic motorized hoist.
machine technical description
– shot blasting camera;
– abrasive collection and regeneration system;
– air ventilation and filtration system;
– control panel (consoles);
central shotblasting chamber
it is directly and thoroughly manufactured with wear resistant manganese steel 12-14% plate. The structure is stiffened outside with a set of section bars to guarantee the sturdiness chamber.
internal auxiliary protections
- the wall opposite to turbines direct shot is lined with bolted auxiliary wear resistant manganese steel plates
- grating in the middle of the blasting chamber; it is straight and thoroughly made of wear resistant manganese steel plate 12-14 %. Steel made grating in the side zones protected by perforated wear-resistant rubber
- shotblasting chamber ceiling in the turbines direct shot impact zone is protected by bolted auxiliary wear resistant manganese 12-14% steel plates.
upper slit for hook y passage + 2 hooks
two manual hooks are installed on the rod y passage with strong structure with load capacity 1 ton
