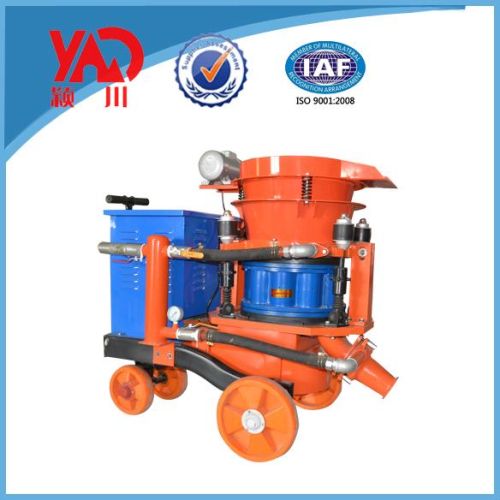

Contact SupplierWe are offering shotcrete machine for concrete.
This is a kind of dry type shotcrete machine, it has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc.
Technical parameter:
output:5m3h
max. Convey distance:horizontal:200m vertical: 20m
water cement ratio:�0.4
max. Aggregate size:ã� 20mm
hose inner diameter:ã� 51mm
rotor diameter:ã� 438mm
operating air pressure:0.4~0.6mpa
air consumption:7-8m3min
motor power:y132-6-5.5kw
voltage:380v or as your request
dimension:1450x800x1280(mm)
net weight:600kg.
