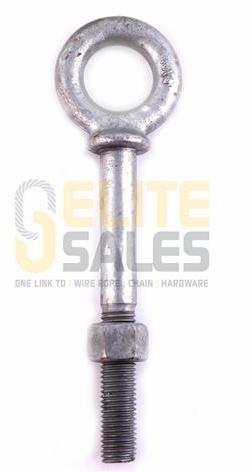

Shoulder Nut Eye Bolts

Bolt Dia. & Shank Length (in) Working Load Limit (lbs) Weight Per Piece in LBS Dimensions (in) Part No.
A B C D E F G H J
14X2 650 0.07 0.25 0.50 0.88 0.19 1.50 2.00 2.94 0.50 0.47 HG14X2SN
14X4 650 0.09 0.25 0.50 0.88 0.19 2.50 4.00 4.94 0.50 0.47 HG14X4SN
516X2 14 1,200 0.13 0.31 0.62 1.12 0.25 1.50 2.25 3.50 0.69 0.56 HG516X214SN
516X4 14 1,200 0.19 0.31 0.62 1.12 0.25 2.50 4.25 5.50 0.69 0.56 HG516X414SN
38X2 12 1,550 0.21 0.38 0.75 1.38 0.31 1.50 2.50 3.97 0.78 0.66 HG38X212SN
38X4 12 1,550 0.25 0.38 0.75 1.38 0.31 2.50 4.50 5.97 0.78 0.66 HG38X412SN
12X3 14 2,600 0.43 0.50 1.00 1.75 0.38 1.50 3.25 5.12 1.00 0.91 HG12X314SN
12X6 2,600 0.57 0.50 1.00 1.75 0.38 3.00 6.00 7.88 1.00 0.91 HG12X6SN
58X4 5,200 0.69 0.62 1.25 2.25 0.50 2.00 4.00 6.44 1.31 1.12 HG58X4SN
58X6 5,200 1.02 0.62 1.25 2.25 0.50 3.00 6.00 8.44 1.31 1.12 HG58X6SN
34X4 12 7,200 1.25 0.75 1.50 2.75 0.62 2.00 4.50 7.44 1.56 1.38 HG34X412SN
34X6 7,200 1.50 0.75 1.50 2.75 0.62 3.00 6.00 8.94 1.56 1.38 HG34X6SN
78X5 10,600 2.25 0.88 1.75 3.25 0.75 2.50 5.00 8.47 1.84 1.56 HG78X5SN
1X6 13,300 3.75 1.00 2.00 3.75 0.88 3.00 6.00 9.97 2.09 1.81 HG1X6SN
1X9 13,300 4.29 1.00 2.00 3.75 0.88 4.00 9.00 12.97 2.09 1.81 HG1X9SN
1 14X8 21,000 6.50 1.25 2.50 4.50 1.00 4.00 8.00 12.72 2.47 2.28 HG114X8SN
1 14X12 21,000 7.75 1.25 2.50 4.50 1.00 4.00 12.00 16.72 2.47 2.28 HG114X12SN
1 12X15 24,000 14.25 1.50 3.00 5.50 1.25 6.00 15.00 20.75 3.00 2.75 HG112X15SN
Forged Carbon Steel, Hot Dipped Galvanized
