Shrink BOPP Film, Hardness : Soft

Company Information

Ask for more detail from the seller

Report incorrect details

Features :

Packing & Shipping :

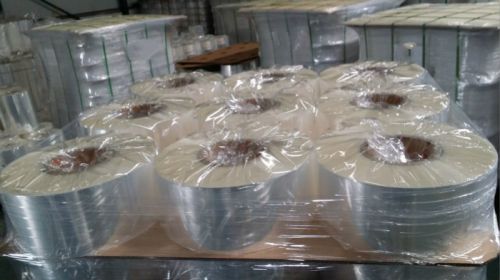

BOPP Film Rolls are packed by poly film and cardboard then put on pallets, by which they will be protected from any damages during transport and handling.
Shipping way including sea, land, air, or other ways which are workable for you, and normally the production lead time of 1 40ft container is 15 days

Material	BOPP	Roll Width	from 180mm to1880mm
Typical thickness	20mic, 21mic, 22mic, 23mic, 25mic	Roll Length	from 100m to 6000m
Core Size	1 inch(25.4mm), 3 inch(76.2mm)	Shrink Rate	3%-10%
Joint	≤1	Finish	High Transparency
MOQ	5 tons (mixed width available 500mm,600mm,700mm etc.)	Sealing Temperture	120 ^oC
Application	Cigarette packet sealing, tobacco carton sealing, gift wraping

Test Item		Unit	Typical Numerical	Test Method
Thickness		Micron	20	GB 6672
Haze		%	1.15	GB 2410
Glossiness		%	87.5	GB 8807
Friction Coefficient	in/in	-	0.23	GB 10006
Friction Coefficient	out/out	-	0.22	GB 10006
Thermal Shrinkage	MD	%	3.1	GB 12027
Thermal Shrinkage	TD	%	2.3	GB 12027
Modulus of Elasticity	MD	N/m²	2159	DIN 53457-Z
Modulus of Elasticity	TD	N/m²		DIN 53457-Z
Tensile Strength	MD	N/m²	160.5	GB 13022
Tensile Strength	TD	N/m²	295.2	GB 13022
Elongation at Break	MD	%	164.7	GB 13022
Elongation at Break	TD	%	52.9	GB 13022
Thermal Sealing Temperature	In/In	-	110	HUANYUAN
Thermal Sealing Temperature	Out/Out	-	110	HUANYUAN
Heat Sealing Strength	In/In	N/15mm	2.91	120
Heat Sealing Strength	Out/Out	N/15mm	3.14	120
Water Vapor Transmission Rate	23, 85% RH, 24hrs	g/m²	1.2	ASTM F 1249
Water Vapor Transmission Rate	38, 90% RH, 24hrs	g/m²	6.8	ASTM F 1249
Oxygen Transmission Rate	23, 85% RH, 24hrs	cc/m²	850	ASTM F 1927
Oxygen Transmission Rate	23, 0% RH, 24hrs	cc/m²	950	ASTM F 1927
Yield		g/m²	18.3	HUANYUAN
