Contact SupplierConfiguration of YY-100P
Machine production efficiency: 100 Bottlemin
Independent feeding material shelf. Computer auto control automatic detection,automatic positioning
exchange quickly label , Save Labor,cut accurately label
Electrical Appliance Configuration Instructions
YY-100P type is a low-speed machine, but it adopts equivalent PLC, positioning module, servo motor and frequency converter, it also adopts a touch screen featured with a humanized operation.
Applicable Bottle types
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

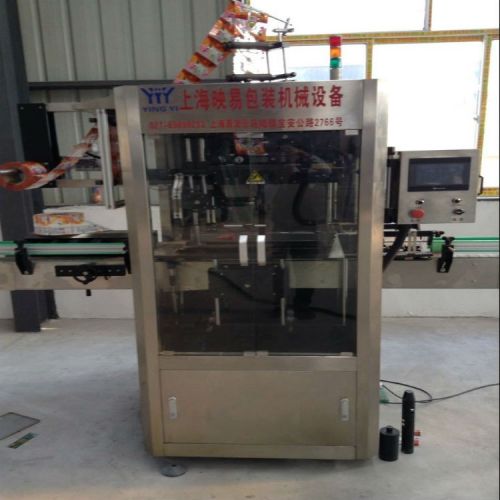

Item: Sleeve label machine
Model: YY-100P
power(kw) 1
Voltage (v) 3,380220VAC
Product speed (bm) 100-150
Applicable Diameter of Bottle Body(mm) Ф28 mm-Ф125mm
Applicable Diameter of Bottle Body (mm) 30~ 250
Applicable Thickness of Label(mm) 0.03 ~0.13
Applicable Internal Diameter of Paper Tube(mm) 5”~10” adjust freely
Size of Host Machine(mm) 2100L*850W*2000H
weight(kg) 250
