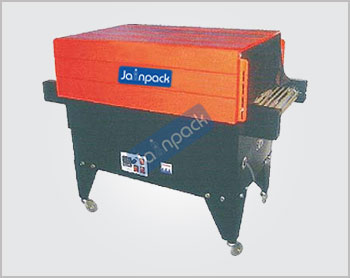

Shrink Tunnel, Automatic Grade : Automatic

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features: • Both the height of tunnel and shutters are adjustable • SP 4525 adopts single hot wind tunnel • SP 4535L & SP 6535L are designed for better shrinking effect • Widely applied for outer shrink packing • Used in supermarket for sales promotion

View More Details

Company Information

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	SPS 3020	SPS	SPS 4535 L	SPS 6535 L
Tunnel Size (W x H) mm	300 x 200	450 x 250	450 x 350	650 x 350
Voltage (V/Hz)	220 / 50	220 / 50 -380 / 50	380 / 50	380 / 50
Power Consumption (KW)	4.5	6.5	9.6	12.5
Convayor Loading (Kg)	10	10	30	30
Heating Furnance (l x w x h) mm	900 x 300 x 50-200*	900 x 450 x 50-200*	1200 x 450 x 50 – 350*	1200 x 650 x 50-350*
External dimensions (l x w xh ) ( mm)	1200 x 500 x 800	1200 x 650 x 1240	1200 x 650 x 1340	1200 x 850 x 1340
Speed ( m/min.)	0 – 10	0 – 10	0 – 10	0 – 10
Heating Time (minutes)	10	10	10	10
Cooling Time (minutes)	15	15	15	15
Net Weight ( Kg)	70	90	120	150
