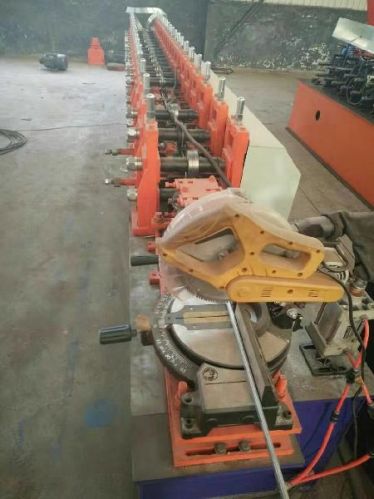

Shutter Door Cold Rolling Forming Machinery

Shutter Door Cold Rolling Forming Machinery Shutter door is so popular as that we can see it everywhere when we gooutside, such as the door of the shop and garage , factory and so on. Ourcompany can produce many kinds of shutter door machine , such asAustraliashape , normal shutter door type and so on.We have R&D team , no matter what type you want , we can give you aprofessional and satisfied reply . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand 1. Roll shutter door forming machine can prevent rainwater infiltrated2. Fire resistance rolling shutter door also have function of fireproof3. High efficiency, energy saving, can be used continuously4. Roll shutter door forming machine use PLC and inverter controller5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness :  0.3---0.8mm Material width : 100 - 160 mm(according to the profile) Diameter of shaft : 75 mm Roller Station : 10 - 15 steps Sidewall Thickness : 14 mm Main frame :400 H steel Motor Power : 4 + 3 kw Forming speed : 10 -  20mmin Forming rollers Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm
