Shutter Door Guide Rails Roll Forming Machine

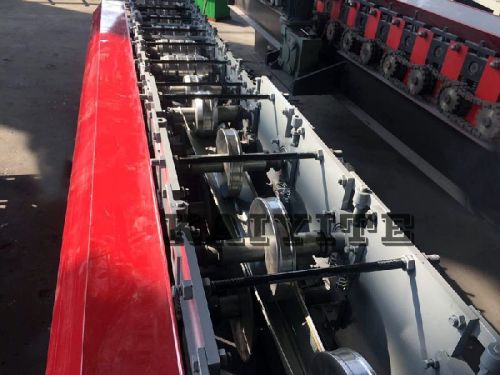

Shutter Door Guide Rails Roll Forming Machine As a professional manufacturer of roll forming machine , we haveexperienced R&D department .If you have your own special profile drawing, we also can design themachine as per your profile drawing or sample.We will give you a professional and satisfied shutter door guide rails roll forming machine . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Shutter door guide rails roll forming machine lower cost high efficiency reliable working  low energy consumption  You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness:  0.8---2.0 mm Material hardness: 550 mpa---350 mpa Material width:  200mm(according to the profile) Formed width: 101.6mm (according to the profile) Forming speed: 12mmin Working speed :8mmin In order to help you know our machine much better. The following is the detailed pictures of the machine. Forming rollers Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm Main frame specification: 350 H steel.feature: More stable, no shaking The profile of the machine
