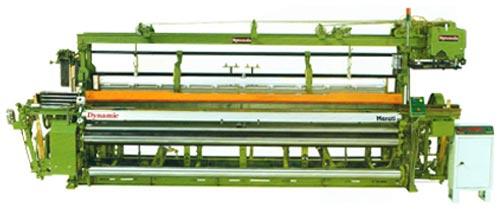

We are offering shuttle loom - maruti.
technical specifications
machine drive : push button system with electromagnetic brake motor of 0.75/1.0 kw.
take-up motion : pickle's 7 gear mechanism.
picking under pick motion with "u" buffer & leather buffer on
single shuttle side.
"c" buffer & auxiliary picking stick on multi shuttle side, heavy
duty hydro pneumatic "zama" buffer on both the sides.
shedding motion : cam shedding/dobby/jacquard
reed space : 60" to 132"
warp stop motion: electric (6 row)
weft stop : electro-michanical
weft feeler : optical
shuttle size : up to 29 x 39 x 395 (mm)
shuttle box : 1x1, 2x1, 4x1,4x4
beating motion : fast reed system
