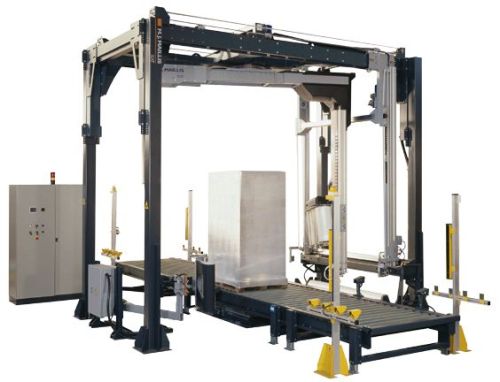

RA-Range Pallet Stretch Wrapping Machine, Packaging Type : Carton Box

The machine, suitable for medium to high production rates, has been designed for unstable loads and can be installed at the end of any automated production line or as stand-alone unit, with integrated in-feed and out-feed conveyors. The RA machines have a state-of-the-art power pre-stretch unit, which combines fixed pre-stretch options up to 300% with precise lay-on force control. Thanks to this combination, the end user will be able to obtain a compact and high quality pallet packaging.

The clarity of touch-screen control unit ensures flexibility and high functionality: easy set-up, fault-finding function and manual control of any part of the machine. The machine parameters are simply set by the operator entering the required pallets per hour and film overlap. The machine can be equipped with a film seaming unit and different other options. Safety is provided by mechanical guarding with one interlocked door and light guards on the in-feed and out-feed areas. The machine is in compliance with all european standards and is CE certified.

Key features:

• Stretch film roll dimensions (mm) - 500 (W) x 300 (ø) x 76 (ø Optional 750)
• Top sheet roll width - from 1200mm up to 2400mm
• Rotation speed - up to 34rpm (depending on model)
• Capacity - up to 80 pallet/hour depending on wrapping pattern and machine model
• Film tension (lay on force) - completely adjustable from HMI on each program step
• Control - by Siemens® S7-1200 / S7 - 300 PLC with color touch-screen Panel
