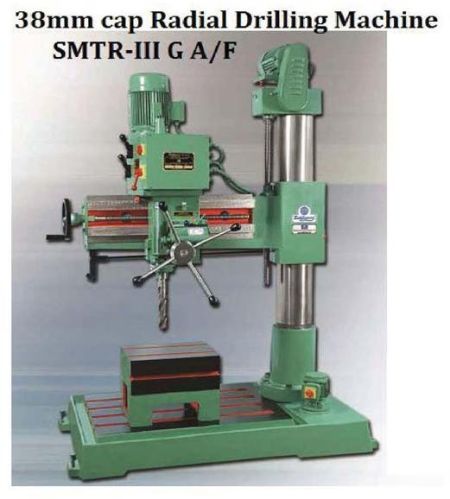

Autofeed With All Gear Radial Drilling Machine

Specification smtr-iii ga
drilling capacity - 38mm to 40mm
drill head
1.spindle nose - mt-4
2.spindle travel - 220
3.no of spindle - 8
4.range of spindle speed(rpm) - 90 to 1000rpm
5.range of power feed - (2) 0.20-0.10
power
1.main motor (1.5 hp ) - 1400kwrpm 1.552800 kwrpm
2.arm elevating motor (0.5 hp) - a-23 v-belt
working table
l x w x h - 380 x 300 x 300
working range
1.drilling radius max.min. - 895440
2.max.min.dist.column to spindle - 850275
3. Max.drill head drive - 450
4.max.min. Base plate to spindle -930230
5.diameter of column -168
base plate
l x w x h -760 x 1250 x 150
working surface -820 x 610
no. Of t-slot -4
dimension
overall height� 2000
wooden case(l x w x h) -1250 x 1550 x 2000
