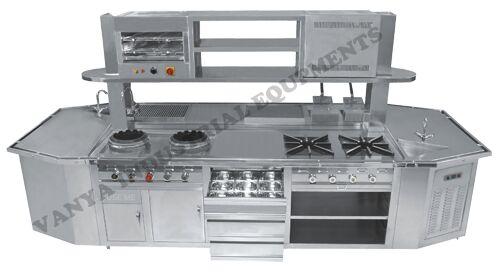

SIDE-A ISLAND SUITES

PRODUCT FEATURES

Over All Dimensions :- 174"(L) x 66"(W) x 34"+42"(H)

TWO BURNER INDIAN RANGE

• Two Burner Range in Island Kitchen offered for Indian kitchen menu.
• 02 no. of heavy duty removable Pan supports for easy cleaning.
• Cooking Range made in heavy duty gauge stainless steel.
• Range available in HP/LP Burners along with Pilot Burner Control.
• One under shelf provided for underneath storage.
• Removable spill tray underneath burners with S.S handles.

TWO BURNER CHINESE RANGE

• Two Burner Chinese Range in Island Kitchen offered for Chinese kitchen menu.
• 02 no. of heavy duty removable Pan Support (with Exhaust Vent Cut Outs) for easy cleaning.
• Cooking Range made in heavy duty gauge stainless steel.
• M-Type HP Burners equipped with needle control valves.
• Front provided with satin finish stainless steel operating panel.
• Full width deep gutter sloped to rear with strainer.
• Water Pipe for easy cleaning of the top surface is provided.
• Swivel cold water gooseneck faucet & control provided at the right pillar of Island Kitchen.

DRAWER (1st) WITH MEZZA CONTAINERS

• Drawers front & inner in satin finish heavy duty stainless Steel Sheet with recessed Drawer Handles.
• Ultra Smooth heavy duty drawer's auto push slides.
• Drawer accommodates 09 Nos. of 1/6 x 4" deep GN Pan.

TWO (2nd & 3rd) DRAWERS FOR DRY STORAGE

• Drawers front & inner in satin finish heavy duty stainless Steel Sheet with recessed Drawer Handles.
• Ultra Smooth heavy duty drawer's auto push slides.

STORAGE CABINET

• 01 Nos. of under shelves made in heavy duty stainless steel Sheet.
• Lockable Door for dry storage.

OPEN STORAGE WITH 02 UNDER SHELVES (Below 2 Burner Indian)

• 02 Nos. of under shelves made in heavy duty stainless steel Sheet.
• Top shelf can be removable.

SINK WITH TAP MIXTURE

• Table with sink unit offered for multi utility purpose in commercial kitchen.
• Top constructed in heavy duty gauge of Stainless Steel.
• Triangular shape Sink made up of heavy duty gauge of stainless steel with drain waste.
• Sink Size 17"x17"x17"x10"
• Sound Deadener Rubber lining provided under the top.

FLAP IN DUST BIN

• Fully constructed in heavy duty gauge of stainless steel.
• Stainless Steel In/Out Flap provided.
• Front door with stainless steel handle.

SALAMANDER

• High Performance heating elements generate intense heat to cook quickly & efficiently.
• Fully constructed in heavy duty gauge of stainless steel.
• Stainless steel removable rack shelf with Bakelite Handles.
• Salamander equipped with thermostat control for quick response time.
• Double jacketed body insulated with mineral glass wool.

OVER HEAD PICK UP SHELVES

• Overhead shelves made in heavy duty gauge of stainless steel sheet.

DOUBLE DOOR REFRIGERATION STORAGE

1. Temp 0° to 10 ° C
2. Double Door Under Counter Refrigerator in Island Kitchen offered for Cold Storage.
3. Fully constructed in heavy duty gauge of stainless steel.
4. 2.25" Puffed in place "Zero ODP" polyol / isolynate insulation.
5. 1.5" dia drain waste with stainless steel dip tray.
6. Light is provided for clear view of products kept inside.
7. Adjustable stainless steel shelves are provided.
8. Independent on/off compressor switch.
9. Kirloskar Compressor with compactable digital temperature meter provided in the unit.
