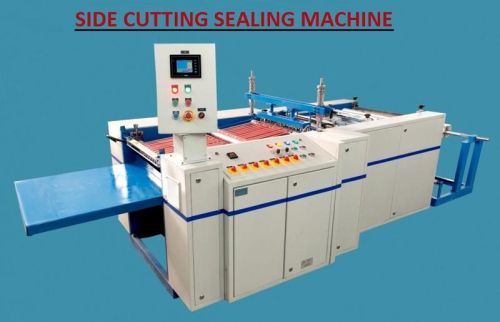

Side Sealing Bag Making Machine

Side Sealing Bag Making Machine (Code : SI-SSBM), we offer, is an ideal machine for making textile packing bags, sock bags, towel bags, bread bags, CD DVD cover bags and ornaments bags, etc. Our Side Sealing Bag Making Machine runs up to 150 - 250 strokes per minute and suitable for HDPE LLDPE LDPE PP BOPP printed & plain side sealed bags. With the help of our Side Sealing Bag Making Machine the user can make different types of bags such as bottom gusset, inside or outside lip former, handle punch, pre sealer, lateral sealer, perforation, tape applicator for courier bags and more.
Salient Features :

• M.S plate with high precision borings, connected by heavy cross bars of mild steel
• Powder coated paint
• Better accuracy at high speeds
• Digital display with microprocessor controller
• Speed, size, batch size count easily suitable with MMI
• Self-aligning sealing blade lead out of special thermal steel
• Servo driven with PLC
• Photo cell provided for printed material
• Automatic constant temperature makes the sealing of bag opening firmly and smoothly.
• Imported servo system installed for high speed with accuracy
• Digital PID temperature controller SSR output
• Key board setting for different bag lengths
• Programmable AC variable
• Auto count, sense alarm and cut off system
• AC drives for main and unwind
• Static will be eliminated with cutting and sealing
• Short set-up time

Optional Attachments / Accessories :

• Bottom gusset lip former
• Perforation tape applicator
• Handle punch applicator web aligner at unwind
• Soft loop handle patch handle
• Servo stabilizer auto tension controller
• BOPP sealer folding device
• Sheet folder dotted sealer

Technical Specifications :

• Max Web Width : 360, 550, 840, 1050 mm
• Working Width : 320, 510, 800, 1000 mm
• Max length : 1000 mm
• Max Speed : 150 – 250 stroke per minute
• Power requirement : 6 – 10 KW
• Weight (approx) : 1000 to 1500 Kgs

Note :

• Above specifications are as per standards.
• We reserve right to change design / specifications without notice for continuous development.
