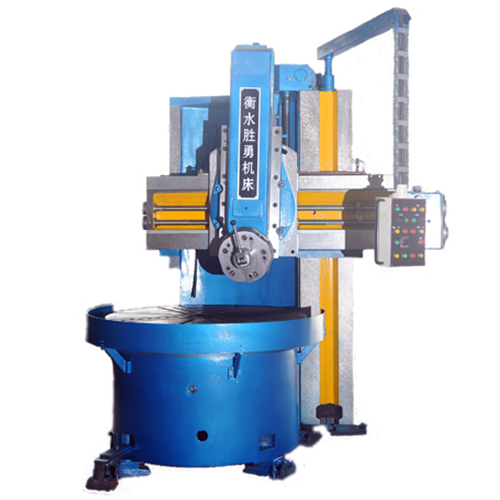

Siemens Controls System 2-Axis Vertical Lathe Machine

Siemens controls system 2-Axis vertical lathe machine is a kind of high precision and high efficiency automatic machine tool. 2 Axis Vertical Lathe has wide process performance, widely processing cylindrical, arc surface and a variety of threads. 2 Axis Vertical Lathes can play a good economic effect in the mass complex production parts.
2 Axis Vertical Lathe Machine is fit for machining disc type workpiece, widely used in metallurgy, electric power, petroleum, ships, engineering machinery (bulldozer, excavator etc.) ,It can have excellent performance in cutting, thread, chamfering, boring, reaming process.
Main technical specifications of Siemens controls system 2-Axis Vertical Lathe Machine CK5116
1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 5 t
5 Speed range of table 5-160 rmin
6 Step of table rotation 16
7 Range of feed rates 0.8-86 mmmin
8 Step 12
9 Horizontal travel of vertical slide 915 mm
Vertical travel of vertical slide 800 mm
10 Horizontal travel of side tool head 600 mm
Vertical travel of side tool head 900 mm
11 Beam travel 650 mm
12 Maximum section size of tool shank 30×40 mm
13 Power of main motor 22 kw
Rotating Speed 1470 rmin
14 Power of feed motor 1.31.7 kw
Rotating Speed 9401440 rmin
15 Machine weight 12.5 t
