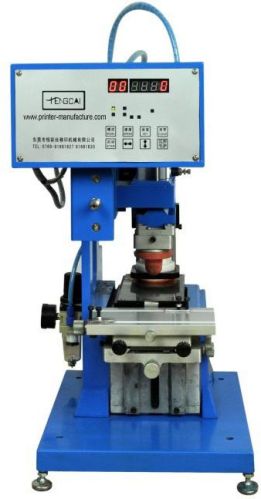

Sigle Color Pad Printer

We are offering mini ink cup sigle color pad printer with desktop.
It is the most competitive pad printer in china, with small floor area and steaby printing quality. It is suitable for printing electronic products, plastic shell, keyboard, hardware products, stationary, small arts and crafts, logo on the surface of gift
feature
1. Scm ic complile action program, kinds of printing model optional
2. Auto-4 digit counter built-in, and stat. Printing quantity
3. Worktable, printing head can be adjusted x.y.x direction
4. Sucking ink and the pressure of printing pad can be adjusted independently
5. It has function of leveling ink by sliding automatically on front/back, this can avoid printing ink partial solidification
6. The speed of all the cylinders have an independent regulator intorturn
7. With long transversa stroke, can print bigger size products
8. Adopting all taiwang pneumatic elements
9. Working steably, high printing precision
10. All the electric elements installed openly, it is convenient to maintain
specification
1. Steel plate size: 100*200mm
2. Printing speed: 2500pcs/hr
3. Packing size: 580 × 410 × 720 mm
4. Net weight: 40kg gross weight: 50kg
5. Shape dimension::500 × 350 × 650 mm
6. Power: 110v/220v 50-60hz
7. Air pressure: 5-7bar
8. Action pattern optional: fully automatic|automatic
9. Start-up style: panel
10. Blade work style: mechanical
11. Transversa stroke: 150mm
12. Vertical stroke: 75mm (the highest of printed products is 100mm
13. Max printing are: 60mm*60mm
14. Ink cup diameter: 60mm
15. Printing workstation: 1
16. Fastening clamp style: t-slot table, code pressure compressing tightly
17. Clamp's material choice: putty|aluminum|carbolite|plastic|steel.
