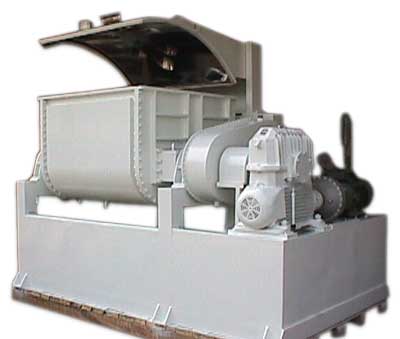

Sigma Mixers

Sigma Mixers are the hi-tech machines used for kneading and uniform mixing of materials with heavier viscosity. We are regarded as one of the prime Manufacturers and Installers of Sigma Blade Mixers in India. We manufacture two types of sigma mixers Single Sigma Mixers and Double Sigma Mixers. The sigma mixers manufactured by us are widely used in the making of rubber compounds, flush colors, adhesives, soap, food dough, stiff pastes, brake lining compounds, PVC coatings, etc. These sigma mixers are invested with various salient features that add to their efficiency like

• Heavy duty gears
• Grills to provide maximum security
• Shaft sealing by Teflon Chevron Rings to prevent leaking.
• Mild steel fabricator
• Specialized blades designed to mix the materials thoroughly.

We pay special attention to the installation of the sigma mixers and provide our customers with after sales service. Operation Loading of material is done through top of mixer on opening the lid or through the feeding mouth / hopper. On starting the machine, the tangential action of mixing and kneading is thoroughly obtained by ‘Z’ shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from blade to blade. Discharge of the mixed product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw below the container if provided.

• Sigma Mixer (Kneader) is a Batch Mixer
• Mixing Trough and Blades are fabricated from mild steel / various grades of stainless steel.
• Product contacting parts are ground, buffed or smooth and clean working.
• Blades are designed to obtain thorough mixing of high viscosity materials.
• Blades are machined on a leading edge to keep minimum equal gap between through walls and blades.
• Heavy-duty gears are fitted to the blades.
• Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
• Guards / Grills and interlocking are provided for maximum safety.
