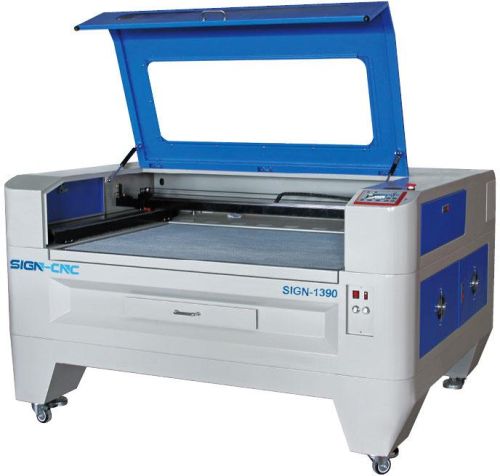

Sign 1390 Laser Wood Cutting Machine

₹ 3.35 Lakh / 5000 5000 Set

MOQ1 Set(s)
Power supplyAC 110 - 220V ± 10%, 50 - 60Hz
Min. shaping characterEnglish 1.0mm x 1.0mm
Recommended Spare PartsLaser Tube and Lens
Laser power80W / 100W / 150W
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2012

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Cutting area1300x 900mm (51 x 35
ModelSIGN-1390
Min. shaping characterEnglish 1.0mm x 1.0mm
Laser Output1-100%software setting
Power supplyAC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature0 - 45°C
Recommended Spare PartsLaser Tube and Lens
Laser TypeCO2 sealed laser tube,water-cooled,10.6um
Net Weight450 kg
Operating humidity5 - 95%
Resolution ratio≤0.0125
Software supportedTajima, CorelDraw, Photoshop, AutoCAD
Cooling modeWater-cooling by water chiller
Driving systemStepper motor and belt
Graphic Format SupportedBMP, PLT, DST, DXF, AI
Laser power80W / 100W / 150W
Engraving speed0-60000mm/min
Resetting positioning accuracy≤±0.01mm
Working life of laser tubeMore than 8000 hours

We are offering sign 1390 laser wood cutting machine ! cutting for wood plastic and acrylic and other non-metal.
Machine features:
1.3mm cold-rolled steel welded machine bed, strong and running stable.
2.fireproof window,more security.
3.high accuracy stepper motors and drivers. Belt transmission
4.tiwan hiwin linear square guide rails, more precision
5.tool box: a set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, cd, u disk, a focal length of stick
6.aluminium blade table: to process hard materials like acrylic, wood and so on.
7.co2 glass sealed laser tube
china famous brand (weeson, reci), good beam mode stability, service time over 1500~8000 working hours.
applicable industries:
furniture industry, model industry,decoration,electronics, advertising, embroidery, garments, label processing, arts and crafts, etc.
1. Updown z-axis: to adjust the height of table, for putting 300mm depth materials.
2. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.
3. Red point for position: the laser is invisible. Red dot shows the position of the laser on the material, quickly find the position.
4. Chiller unit:to cool circular water
5. Honeycomb platform: to engrave soft materials like paper, leather and so on.
