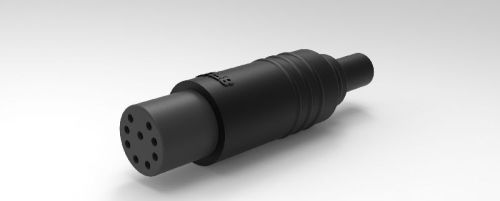

signal connector hg-f-z912a
electrical characteristics
rated voltage48v ac/dc
rated current2a
withstanding voltage500v
insulation resistance≥20mω
contact resistance≤10mω
mechanical characteristics
mating typeinsertion force 80n max, extraction force 30n min
mating cycles200times
performance
operation temperature-25�~+80�
protection degreeip66
wires specification
max outer diameter13mm
mating length67mm
contact materialcopper alloy plated with gold which conforms to military standard
wire section0.14~0.34mm²
Â
ip67 signal connector, higo signal connector, waterproof signal connector price
higo is a professional signal connector supplier, we hot selling rohs signal connector, ip67 splitter connector, reach battery connector, rohs motor connector, reach battery connector and ip67 waterproof connector, etc. Our product's reliability is guaranteed, choose us, you will get a good use experience.
