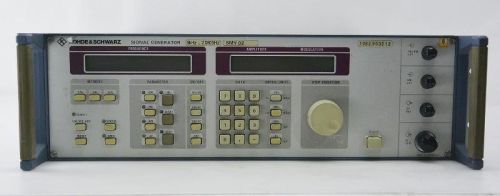

Signal Generator, Brand Name : Rodhe & Schwarz

Description：
•level range -140 dbm to +13 dbm (19 dbm overrange)
•fm-dc with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches
•low ssb phase noise (-114 dbchz) and high spurious rejection for all in-channel and blocking measurements
•low residual fm affording ample of margin for sn measurements
•modulation generator 1 hz to 500 khz for modulation frequency response measurements
•stereo channel separation of 50 db and low harmonic distortion for testing fm stereo receivers
•non-interrupting level setting over a range of 20 db for reproducible measurement of squelch hysteresis
•frequency resolution 1 hz, suitable also for narrowband test items
•fm-dc, deviation up to 20 mhz for vco simulation
•fm bandwidth 2 mhz for fast fsk and telemetry applications
•high output level up to 19 dbm (25 dbm with option r&s smy-b40) for component and overdrive testing
•af synthesizer 1 hz to 500 khz, separate use as af signal source for external applications possible, eg recording of af frequency response
•remote-control interface iec625ieee488 for use in automatic test systems
condition： 　 　 　 　 　 　 　 　
1. this used item is in excellent working condition.
2. no accessories are included.
shipment： 　 　 　 　 　 　 　 　
1. All values are in usd and do not include the customs duties & taxes and other surcharges.
2. The instrument will ship out within 5 days upon payment received.
3. We usually choose fedextnt international economy. Other shipment way is also acceptable.
