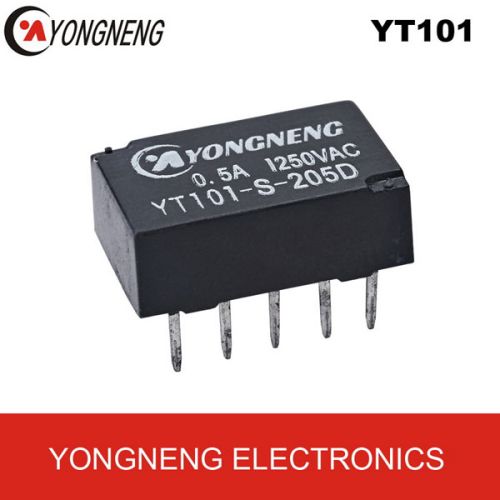

Contact SupplierWe are offering Signal Relay.
communication relay (item yt101)
contact data
model no. yt101
contact arrangement 2c
contact resistance 50mω
contact material silver alloy
contact rating (resistive load) 1a 125vac/30vdc
max.switching current 2a
max.switching voltage 125vac/30vdc
max.switching power 125va/30w
mechanical endurance 10000000 ops
electrical endurance 100000 ops
coil data
nominal coil voltage (vdc) 3,4.5,5,6,9,12,24
nominal operating power 0.1w/0.2w,0.15w/0.3w,0.14w,0.2w
characteristics
operate time 3ms max.
Release time 3ms max.
Insulation resistance 1000mω max.(500vdc)
dielectirc strength "between open contacts: 750vac, 50/60hz 1min.
Between coil&contacts: 1000vac, 50/60hz 1min.
Between contact sets: 1000vac, 50/60hz 1min."
vibration resistance "destructive: 10-55hz, double amplitude of 1.5mm
functional: 10-55hz, double amplitude of 1.5mm"
shock resistance "functional: 10g min.
Destructive: 50g min."
ambient temperature -30c-70c(not condensing)
weight approx.1.5g
