Signalling Control Railway Cables

We are offering signalling control railway cables.
Application
the cables are used as cabling wires for the relays and electronic equipments in the traffi c control center and trackside equipment shelter. The cv cables are suitable for use only in optical control panel (ocp) wiring.
Standard
sncf ct 500

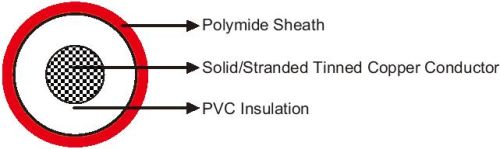

cable construction
conductors class 5 stranded tinned copper (for flexible wires cv-s & cvz-s type), class 1 solid tinned copper (for stiff wires cv & cvz), 0.51.02.56.0 mm² cross section.
Insulation white (for cvz type)coloured (for cv type) unleaded pvc.
Sheath coloured polyamide outer sheath (for cvz & cvz-s type).
Electrical characteristics at 20℃
cvcvz
nominal conductor diameter mm 0.8 1.17 1.78
nominal cross section area mm² 0.5 1.0 2.5
maximum conductor resistance(dc) ωkm 36.1 17.9 7.56
operating voltage v 750
cv-scvz-s
no of strands strand diameter nomm 160.2 320.2 500.25 840.3
nominal cross section area mm² 0.5 1.0 2.5 6
maximum conductor resistance (dc) ωkm 40.1 20.0 8.21 3.39
operating voltage v 750
mechanical and thermal properties
minimum bending radius (static) 4×od (for fl exible wire); 5×od (for stiff wire)
minimum bending radius (dynamic) 8×od (for fl exible wire); 10×od (for stiff wire)
operating temperature -15℃ to +70℃
