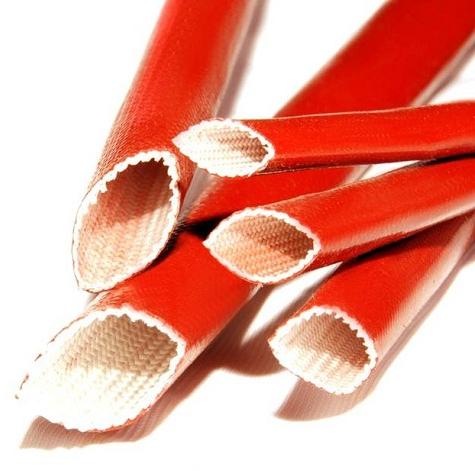

Contact SupplierWe are offering silicon elastomer coated fiberglass sleeving.
Class 200°c • silicon elastomer coated fiberglass sleeving for high temperature applications.
ul recognized component 600v - 200°c grade a vw-1 file # e324343.
it is comprised of specially formulated high-temperature silicon elastomer continuously applied over electrical grade braided fiberglass. It maintains its flexibility & electrical insulation properties over a wide temperature range from 40°c through its continuous operating temperature of 180°c. It offers superior coating adhesion to the fiberglass braid in comparison with extruded type. It has an excellent feature of expandability.
product name : silicon elastomer coated fiber glass sleeving
class type: ´h´
working temperature : -60°c to 200°c
characteristics:
good flexibility expandability
chemical resistance
abrasions resistance
self extinguishable
features :
silicon fiberglass sleeving has especially good radiation resistance in addition to resistance to ozone, moisture, corona, weathering, fungus and chemical attack
where resistance to failure on push-back is required, we recommend silicon rubber-coated fiberglass sleeving
typical applications:
dc motor lead protection
alternators
high voltage transformers
wind generators
inner diameter: 0.5mm to 40 mm
wall thickness: we offer customized thickness as per customers technical requirements
break down voltage range: from 1kv to 12 kv
color: natural, white, black, red & other colors available on special order subjected to factory´s acceptance
standards: bs-2848, 1973
is-11654
iec- 60684-3
