Contact SupplierWe provide green, clean, sustainable solar energy by High-quality PV panels to on-grid and off-grid residential,commercial,industrial and large-scale public facilities around the world.
Our products include power output of standard 5W to 360W solar panels and customized solar panels. There are both mono-crystalline and poly-crystal products.

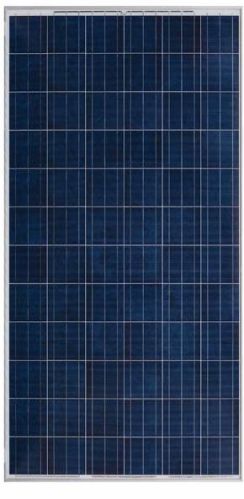

72 cells poly:
power output:      pmax  w  310  305  300  295  290  285  280  275   voltage at pmax:   vmpp  v  36.3 36.1  35.8  35.6  35.3  36.0  36.0  35.5
current at pmax:    immp  a  8.53 8.47  8.37  8.29  8.22  7.92  7.78  7.75
oppen-circuit voltage:  voc   v  45.6  45.4  45.2  45.0  44.8  44.6  44.6  44.0 Â
max. Static load, front (e.g., snow): Â 5400pa
max. Static load, back (e.g., wind): Â Â 2400pa
dimensions(lwh): 1970mm990mm50mm                                            Â
weight: 26.0kg Â
front cover (material thickness): low-iron tempered glass 3.2mm                                        Â
cell (quantity material dimensions): 72 polycrystalline silicon 156mm x 156mm       frame: anodized aluminum alloy.
