Silicone Rubber Compound For LED Electronic Display

We offer silicone rubber compound for led electronic display
usage of silicone rubber compound for led electronic display:
filling for led,lcd electronic display, circuit board.
description of silicone rubber compound for led electronic display:
hy215 is condensation silicone potting compound in two parts with low viscosity.
It can be cured completely at room temprature.hy 215 works on the surface of material as
pc(poly-carbonate),abs,pp,pvc as to its superior bonding feature.
It is also applicable for insulation,waterproof and bonding of electronics parts. It meets therequirements of
european rohs.
typical application of silicone rubber compound for led electronic display
-potting for protection of general electronic module.
-outdoor protection for led screen.

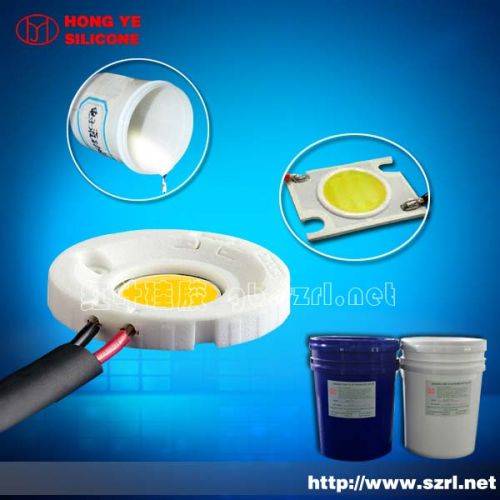

silicone rubber for potting compound.jpgsilicone rubber compound for led electronic display.jpg
technical parameters of silicone rubber compound for led electronic display:
properties index
part a
part b
before curing
appearence
black fluid
colorlessyellowish fluid
viscosisty(cps)
2500â±500
-
features when operation
mixing ratio(by weight)
10:1
operating time(25â°c min)
20~30
curing time(hr,basically cured)
3
curing time(hr,perfectly cured)
24
hardness(shore a)
15â±3
after curing
thermal conductivity[w(mâ·k)]
�0.2
dielectric strength(kvmm)
�25
dielectric permittivity(1.2mhz)
3.0~3.3
volume resistivity(î©â·cm)
â�¥1.0ã�1016
fire resistance
94-v1
(pls noet: all data of this product above in 25â°c with 55% humidity conditions. We don't
guarantee a same date if testing under different conditions,or when data was regenerated)
warm tips of silicone rubber compound for led electronic display:
1.sealing pakage for storage. The mixture should be used up at once to avoid wasting.
2.silicone belongs to non-dangerous goods, but keep away form mouth and eyes.
3.when it gets stratified after a period of storage, please mix hy 215 evenly before using,
it does not affect the performance.
packaging & shipping
package of silicone rubber compound for led electronic display:
hy215: 22kgset (part a 20kg + part b 2kg)
liquid silicone rubber.jpg
faq
shelf life and transportation of silicone rubber compound for led electronic display
1.twelve(12) months when stored at 24â°c in original unopened packages.
2.this kind of product is non-dangerous product , it can be transported as
general chemicals.
3.products exceed the storage life should be confirmed normal before using.
technical guidelines of silicone rubber compound for led electronic display
1.pls put part a and b in separate container and stir evenly before mixing the two
parts together.
2.weight ratio: part a:part b =10:1
3.bubble release if necessary , deaeration the mixture under 0.08 mpa for 3 minutes.
4.hy 215 is cured at roon temperature, so pls put it under room temperature after
pouring. It comes to next process when basically cured, and it takes about 24 hours
for completely cured.
(kindly note: temperature and humidity with a tremendous influences for curing of
hy215.)
