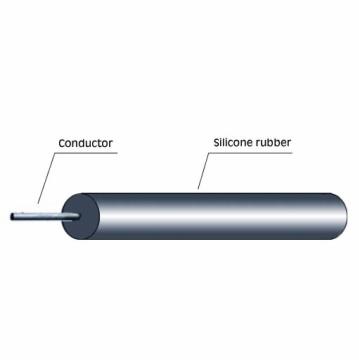

Silicone Rubber Insulated Motor Lead Cable, Brand Name : Orient

We are offering silicone rubber insulated motor lead cable
product features:
�rated voltage: 3000v
�rated temperature: -60 'c to +200'c
�conductors: tin coated copper wire
�insulator: silicone rubber
�applicable to f, h class insulation motors and electrical appliances.
Wire lettering:
jgg 0.75mm² -240mm² 200'c 3000v
items
technical datas
applied standard
outer appearance
smooth, even, without loose
q/320281anx01-2006
gb 5013.3-1997
spark test
ac10kv/ 0.15 s
vol. Test
9 kv/5 min
mechanical properties of insulation material
before aging
tensile strength
>5.0n/mm²
elongation at break
>150%
after aging
tensile strength
>4.0n/mm²
(200±3'c x240h)
elongation at break
>120%
poisonous substance control
comply with rohs rule
eu�2002/95/ec
