Stainless Steel Drawbar Force Gauge, Size : 2inch, 8inch

We offer superior quality Drawbar Force Gauge which checks the drawbar holding force of spindles of machining centers directly in KGF /LBF in less than one minute. There are no delicate electronic parts and no moving parts in the gauge. Just by using suitable adapters and pull studs it can check spindles with tapers 30, 40, 50 in CAT, BT-MAS, ISO and HSK.
Models

• 1400 KGF
• 2400 KGF
• 4500 KGF models for taper # 30, 40 & 50

Applications

• Clamping force in assembly work
• Hydraulic presses
• Vise clamping

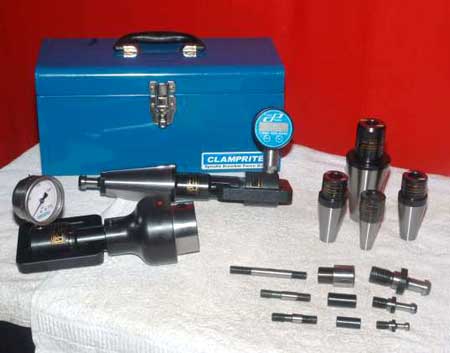

The Basic Clamprite Gage Head
The basic kit tests all 30, 40, and 50 taper machines CAT, BT,)SO and also HSK Pull-stud and spindle adapter is not included. Use your own pull stud per the instructions that are included in the kit.

• 47CG14K - 1400 Kgf I 3,000 Lbf. (for 30 and 40 Taper Spindles)
• 47CG24K - 2400 Kgf I 5,000 Lbf (for 40, most 50 & upto HSK63 Spindles)
• 47CG45K - 4500 Kgf 110,000 Lbf. (for heavy duly 50 HSK80 & 100 Spindles)
