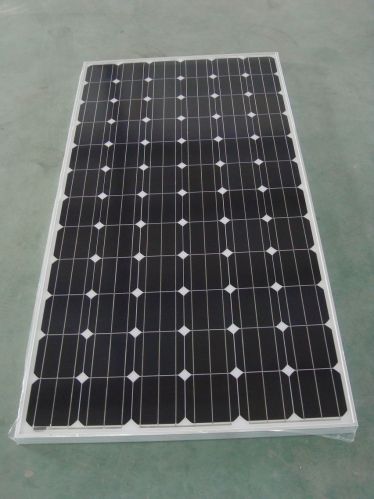

Contact SupplierWe are offering silver frame mono crystalline solar panel,
number of cells (pcs) 72
maximum power (pmax) 195w
output tolerance plus
open circuit voltage(voc) 43.2v
short circuit current (isc) 6.36a
maximum power voltage (vmp) 36v
maximum power current(imp) 5.41a
standard test condition (stc): irradiance level 1,000w/m2, spectrum am 1.5, and cell temperature 25℃
temperature coefficients of pmax -0.549%/℃
temperature coefficients of voc -0.397%/℃
temperature coefficients of isc +0.06%/℃
maximum system voltage (v) 1,000 vdc
temperature cycling range -40℃~+85℃
surface maximum load capacity 2,400pa
allowable hail load 227g steel ball fall down from 1m height
dimensions (mm) 1580mm(l)×808mm(w)×35mm(h)
frame aluminium-alloy
length of cables (mm) 900
weight(kg) 19kgs
packing 25pieces for one pallet
warranty 12 years warranty, 90% for 10 years, 80% for 25 years.
