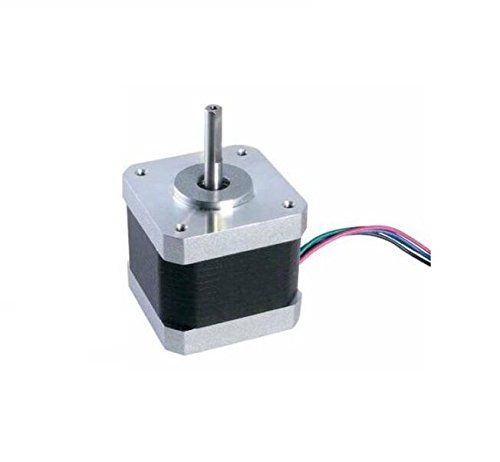

SYM42S48 5.5 Kg-cm NEMA 17 Stepper Motor 4 Wire Bipolar For CNC / 3d Printer / Robotics

₹ 199 / Piece

MOQ1 Piece(s)
Brand NameShoptron
Number Of FlowerStepper Motors
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader
Preferred Buyer Location All over the world

Step angle: 1. 8 Deg Current a - 1. 5, Resistance (ohms) - 2. 8, Inductance (mh) - 5. 5 Holding torque n. Cm - 55 No. Of leads - 4 (bipolar) Length - 48mm NEMA 17 is the motor of choice for....

Company Information

Member Since 6 Years
Nature of Business Retailer
GST No. 07btapg2911e1zb

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Step angle: 1. 8 Deg
Current a - 1. 5, Resistance (ohms) - 2. 8, Inductance (mh) - 5. 5
Holding torque n. Cm - 55
No. Of leads - 4 (bipolar)
Length - 48mm

NEMA 17 is the motor of choice for RepRap's/3d printers/ desktop CNC routers. It is also a suitable motor for various robotics applications. This motor is the most preferred motor used by the rep rap community. Specifications - step angle: 1. 8 Deg. Step angle accuracy: +/- 5 percent. Resistance accuracy: +/- 10 percent. Inductance accuracy: +/- 20 percent. Temperature rise: 80 deg c max. Ambient temperature: -10 deg c +50 deg c. Insulation resistance: 10 m ohms min, 500Vdc. Dielectric strength: 500 vacs for one minute. Shaft radial play: 0. 02 Max (450 g-load). Shaft axial play: 0. 08 Max (450 g-load). Specifications: current a - 1. 5. Resistance (ohms) - 2. 8. Inductance (mH) - 5. 5. Holding torque n. Cm - 55. Detent torque n. Cm - 2. 6. No. Of leads - 4 (bipolar). Weight - 350g. Length - 48mm.
