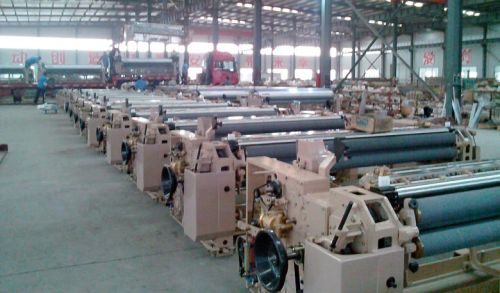

Similar Tsudakoma Water Jet Loom

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering similar tsudakoma water jet loom. Electronic /double nozzle water jet loom main technical parameters: open method: 2-8 brown frame 2-flat opening 16 brown frame dobby opening;....

View More Details

Send Enquiry

Company Information

Qingdao Machinery Manufacture Co., Ltd

China

View Number

Member Since 14 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering similar tsudakoma water jet loom.
Electronic /double nozzle water jet loom
main technical parameters:
open method: 2-8 brown frame 2-flat opening 16 brown frame dobby opening;
weft: high-pressure water flow, a single nozzle;
weft feeder: mechanical drum measuring weft storage device;
let-off: semi-active semi-passive type continuous let-off;
take-up: continuous coiling;
: 30-420d use of hydrophobic synthetic filament;
disk head diameter: φ 800φ 1000mm;
cloth diameter: φ 420mm, φ 520mm;
reed sites: 150cm, 170cm, 190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm;
design speed: 600- 700r/min
