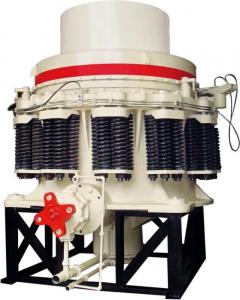

Simmons Cone Crusher

Simmons Cone Crusher
Application:
Simmons Cone Crusher is mainly used in crushing ore, non-ferrous metal ,granite ,limestone, sandstone and grail. It is mainly used in metal and nonmetallic ore ,cement ,construction ,metallurgy industries etc .
Working Principles:
When it is on operation ,the eccentric bushing spins by the electronic motor through triangle belt ,belt wheel ,transmission shaft ,bevel pinion and bevel gear .The axial lead swings forcing by the eccentric sleeve ,making the surface be close or far away to the mortal wall untimely. Because of this ,the materials are impacted and squeezed bended continuously to be crushed .After times of this ,the demanding materials are discharged .
Characteristics :
a. Comparing to the traditional cone crusher ,it possesses the higher property and production capability .
b. Adopting the lamination crushing principle, the percentage of cubic products can be above 90% with uniform granularity .
c. The crushing cavity structure is designed by the lamination principle ,increasing the crushing ratio and production .And the percentage of the cubic products is to be above 90%.
d. When the non-crushing materials enter into the equipment ,they are released automatically by the protector .Then all the discharging mouth can be recovered .
e. Adopting the imported long diameter principle axis, heavy mainframe and automatic control system ,the equipment is sturdy and durable and the operation is steady and reliable.
f. Adopting the automatic clear �cavity technology ,low cost and extensive scope of crushing .It can not only crush fixedly but also movably.
Technical Parameters
Model Bottom diameter
(mm) Max feeding size
(mm) Adjustable discharge size
(mm) Production
(t/h) Power
(KW) Eccentric shaft speed
(r/min) Weight
(t) Overall size
(mm)
PYB600 600 75 12-25 40 30 356 5 2234*1370*1675
PYD600 600 40 2-13 12-23 30 356 5.5 2234*1370*1675
PYB900 900 115 15-50 50-90 55 333 11.2 2692*1640*2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2692*1640*2350
PYD900 900 50 3-13 15-50 55 333 11.3 2692*1640*2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790*1878*2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790*1878*2844
PYD1200 1200 50 3-15 18-105 110 300 25.3 2790*1878*2844
PYB1750 1750 215 25-50 280-480 160 245 25.3 3910*2894*3809
PYZ1750 1750 185 10-30 115-320 160 245 25.3 3910*2894*3809
PYD1750 1750 85 5-13 575-230 160 245 50.2 3910*2894*3809
PYB2200 2200 300 30-60 590-1000 280 220 80 4622*3302*4470
PYZ2200 2200 230 10-30 200-580 280 220 80 4622*3302*4470
PYD2200 2200 100 5-15 120-340 280 220 81.4 4622*3302*4470
