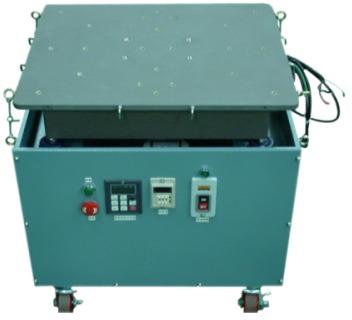

Simple Type Reactive Vibration Tester

Simple type reactive vibration testing machine VS-5060LS features as follows:

• Vertical vibration, the frequency range 5-100Hz, displacement 0-2.8mm (p-p), the maximum load 150Kg, vibration platform size 50x60cm. Power requirements 220V, 50 / 60Hz single phase.
• With the advanced reactionary principle, produces vibration.
• Scalable computer control, operation is very easy.
• Machine with wheels for easy movement and installation.
• With a fixed frequency test function, frequency, time can be freely set. Can also be modified with a sweep function.
• Shock-proof spring-type vibration isolation good, inexpensive and affordable.
• This machine can perform MIL-STD-202F 201A, IEC 60068-2-6, IEC 60512-6-4, CNS C6343, UL 1642, UL 2054, JIS D1601, SAE-575E.

Our advantages recognized by the Industry:

• No consumables, not prone to failure.
• Customized countertops and models to provide the best customer benefits.
• High performance, customer specified.
• Easy to move and easy to schedule.
