    Simplex Round Cable

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    The company offers a huge array of best grade Simplex Round Cable. Special strength members like strands of Aramid yarns are used to make the Simplex Round Cable or Simplex indoor fiber optical....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 12 Years
    • building Nature of Business Supplier
    • Year of Establishment 2008

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

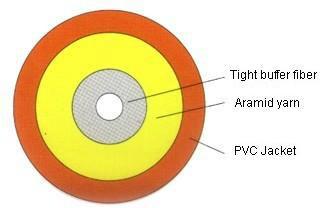

    The company offers a huge array of best grade Simplex Round Cable. Special strength members like strands of Aramid yarns are used to make the Simplex Round Cable or Simplex indoor fiber optical cable. This Simplex Round Cable is uniformly covered with a flame-retardant sheath to make it durable and fireproof. We manufacture the Simplex Round Cable completely in sync with the pre-defined standards like YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc. Our offered Simplex Round Cable has a low induced attenuation and excellent geometrical dimensions. Features

    • Excellent geometrical dimension of the fiber
    • Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
    • Low induced attenuation within the operating temperature range
    • Good performance of flame-retardant
    • Meets the requirements of UL approval for OFNR and OFNP
    Uses
    • Places where waterproof is not strictly required
    • Data communication
    • Making jumper, pigtail and building distribution
    • Installation : riser, plenum, etc.
    • Making connector


    Cable Code

    TypeSXC-IIISXC-IISXC-I
    Cable Diameter2.8±0.2mm2.0±0.2mm1.6±0.2mm
    Cable Weight6.9kg/km5.9kg/km4.0kg/km
    TBF Diameter900±50Μm900±50Μm600±50Μm

    Mechanical Characteristics

    Tensile Strength Long term 80N 60N
    Short term 150N 120N
    Crush Resistance Long term 100N/100mm
    Short term 500N/100mm
    Bending Radius Dynamic 20×D ( Cable Diameter)
    Static 10×D ( Cable Diameter)
