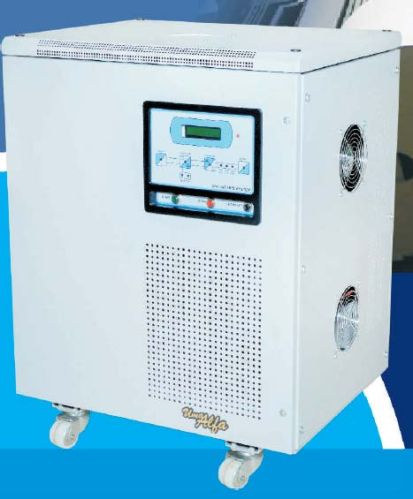

Sine Wave Lift Inverter

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Come and join us in Jamnagar, Gujarat, where we lead as manufacturers, exporters, and suppliers of optimal quality Sine Wave Lift Inverter. Our products are designed keeping the IGBT inverter....

View More Details

Send Enquiry

Product Details

Come and join us in Jamnagar, Gujarat, where we lead as manufacturers, exporters, and suppliers of optimal quality Sine Wave Lift Inverter. Our products are designed keeping the IGBT inverter structure in mind. Additionally, you will receive unbalanced load handling capability with extended overload mechanism, as some of the proficient features. Our exporters and suppliers ensure to deliver your products within 5 to 7 business days.

Features :

Sine wave pulse width modulation (SPWM).
IGBT Inverter design.
High Inrush capability to handle Lift during Start up.
100 % Pure, Reliable and Regulated Power.
Unbalanced Load Handling Capability.
Runs heavy duty appliances/equipments.
Extended overload capability (upto 300 %)
Start up without Mains (Cold start).
Generator compatible.
Low Running cost.
Extended power backup time.
Built in Galvanic Isolation Transformer.
Comparision chart for 7.5 KVA lift UPS with 15 KVA diesel genset for 3 year
These calculations are based on assumption of following parameters.]
Total running time period = 3 years.
3 % Power failure in a year (12 day).
Initial investment
Running cost
Service cost
Depreciation
Battery and diesel Prices are vary time to time

Technical Specifications

Type	3 Phase Input- 3 Phase output
Series	Power Series
Capacity	5 KVA to 50 KVA
Input
No. of Phases	3 Phase-4 Wire
Voltage Range	310 V-480 Volts AC
Input Frequency Range	45 to 55 Hz
Output
Load PF Range	0.8 lagging
Phase	3 Phase-4 Wire
Output Waveform	Pure Sine Wave
Voltage	400 V ± 2 %
Frequency	50Hz ± 0.1 %
Load Crest Factor	>4:1
Output Voltage THD	<=3 % on Linear Load
Over Load Capacity	110 % for 2 Minutes
Transients Recovery	± 4 % Under full load change and corrected within 5 cycles
Phase Displacement	120° ± 1°
Over Load Capacity	105 % continuous, 300 % for 60 sec
By Pass
Maintenance By Pass	Available
Batteries
No. of 12V Batteries	15 up to 15 KVA - 30 from 20 to 50 KVA
Voltage	180 VDC - 360 VDC
Battery Charging current	1 Amp to 10 Amp
Battery Recommendation	From 26 Ah to 200 Ah
General
Indication	LCD panel & LED
Protection	output overload & Short circuit, Output under & over voltage DC Under & Over voltage, Single Phasing & Phase unbalance (for 3 - Ph Input only)
Cooling	Forced Air Cooling
Inverter Efficiency	0.95
Operating temperature	0^oC to 50^oC
Operating Humidity	Max 95 %, Non-Condensing
Accoustic Noise	N

Technical Specifications 2

Parameter	Genset	Lift UPS
Capital Cost	210000	165000
Running Cost	12 days x 3 years x 24 hrs. x 2.5 ltr/hr x 46 rs./ltr Diesel = 99360 Rs.	Batt. Replacement Charges after 3 years approx. 42000 Total saving 55 %
Output Voltage & Frequency	Fluctuate	Constant
THD	>10 %	< 3 %
Crest factor	Nil	4;01
Maintenance	Y	N
Noise	Y	N
Man Power	Y	N
Air Pollution	Y	N
Automatic	X	Y
Repairing Time	1 to 2 days	2 hrs.
Physical	large space req.	Small Space reqd.
